Model Number: | gt15-25 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |

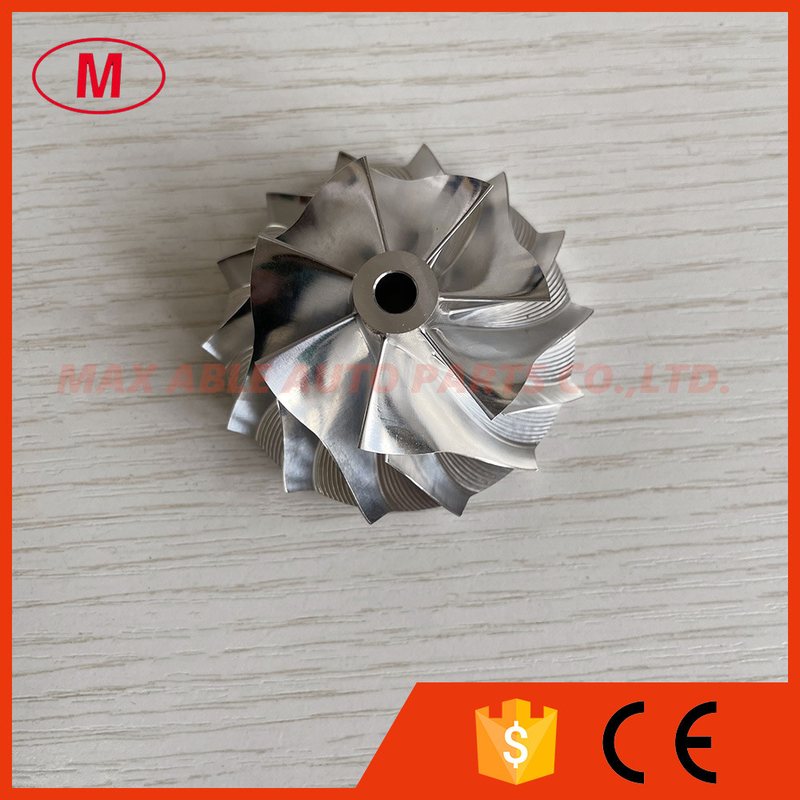

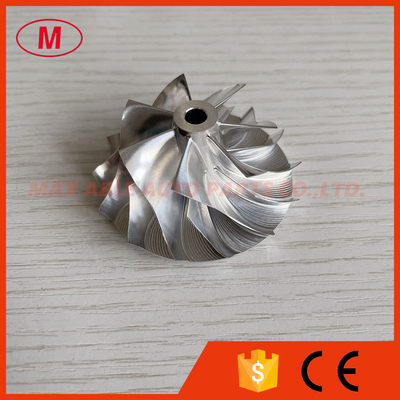

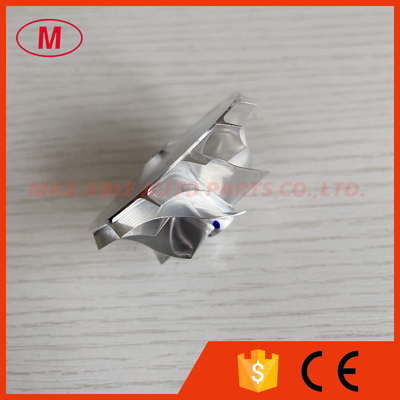

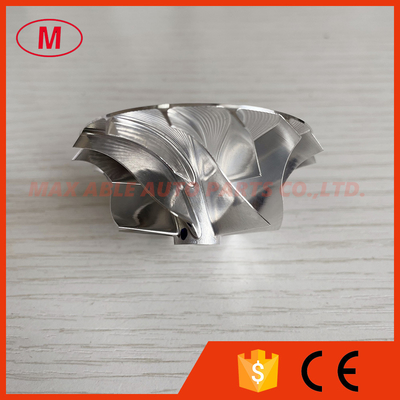

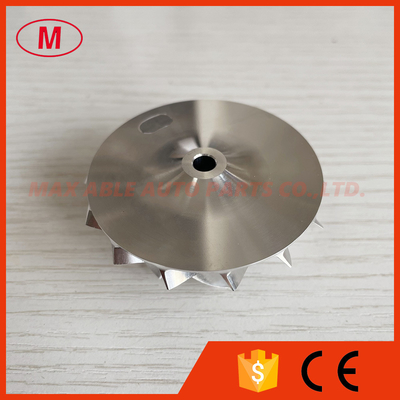

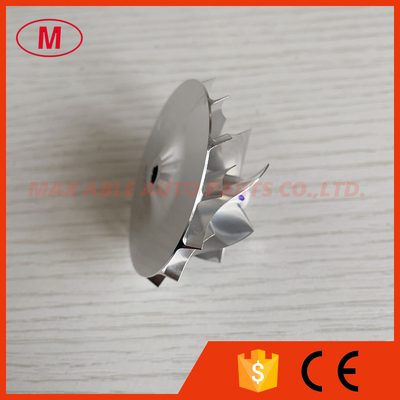

1. MODEL:GT15-25 forward 2. GT15-25 436131-0002/436131-0016 38.62/52.19mm 7+7 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007 / 454061-0006, 454061-0007, 454061-0008, 454061-0009, 454061-0010, 454061-0011, 454061-0012, 454061-0014 / 454135-0001, 454135-0002, 454135-0006 / 701196-0001, 701196-0002, 701196-0006, 701196-0007 / 704594-0001, 704594-0004, 704594-0009 / 705954-0004, 705954-0009
Nose Diameter:10.42mm inducer:38.62mm Exducer:52.19mm Tapered tip exducer:56.39mm Tip height:4.64mm Superback:2.39mm Overall height:26.07mm Bore size:5.08mm bore type:through Trailing angle:60 degree Cutback:6.0mm SP height angle:0.00 Splitter height:11.00mm Blade height:21.81mm 7+7 blades forward rotation Tapered tip angle:30 degree
it is for OE compressor housing Application: 452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007 / 454061-0006, 454061-0007, 454061-0008, 454061-0009, 454061-0010, 454061-0011, 454061-0012, 454061-0014 / 454135-0001, 454135-0002, 454135-0006 / 701196-0001, 701196-0002, 701196-0006, 701196-0007 / 704594-0001, 704594-0004, 704594-0009 / 705954-0004, 705954-0009 4.High quality and competitive price. 5.Any questions please send email to me. All the billet compressor wheels have been balanced. We have more size ,if you want ,please don't hesitate to contact me. Skype: maxabledieselparts Wechat/Whatsapp:+86-18018657719 |
