| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:GT15-25 reverse

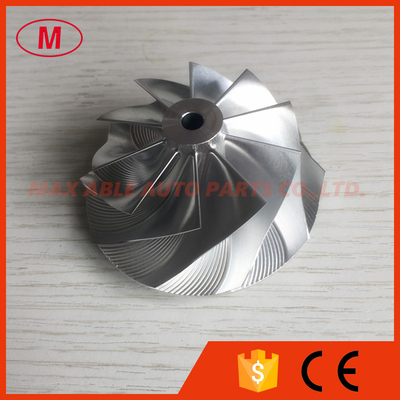

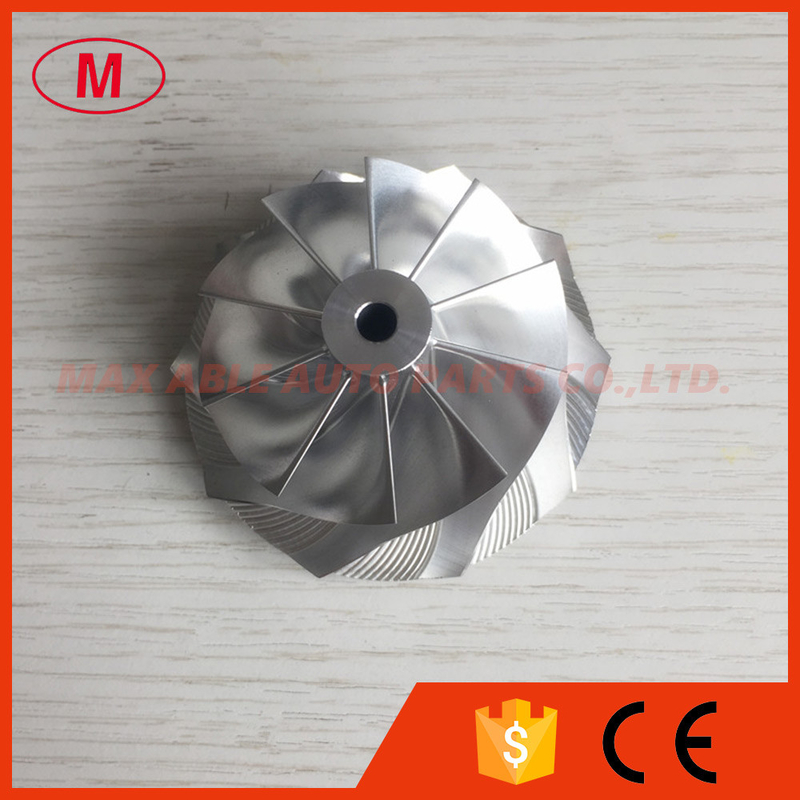

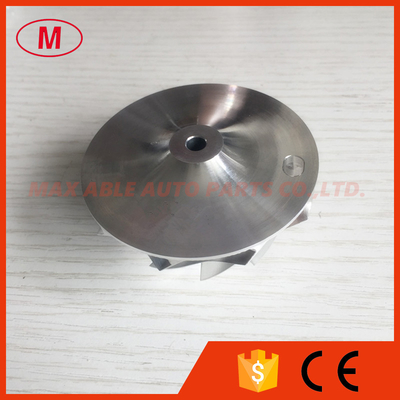

2.GT15-25 reverse 49.60/63.00mm 10+0 blades 824678-0001 billet/milling/aluminum 2618 compressor wheel for 834142-5005 TBW0005R Focus RS 2016
3.Size:
Nose diameter:13.95mm
inducer:49.60mm
Exduder:63.00mm
Tapered tip exducer:65.21mm
Tip height:5.43mm
Superback:5.10mm
Overall height:32.42mm
bore size :5.08mm
bore type:through
Trailing Angle:40 degree
Cutback:6.5mm
Sp height Angle:0.00
Splitter height:0.00mm
Blades height:24.25mm
Tapered tip Angle:14 degree
10+0 blades
Reverse rotation
It is FIT for OE compresssor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
