| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 42.00/59.00mm | Type: | Turbochargers |
|---|
1. MODEL:RHF5 forward

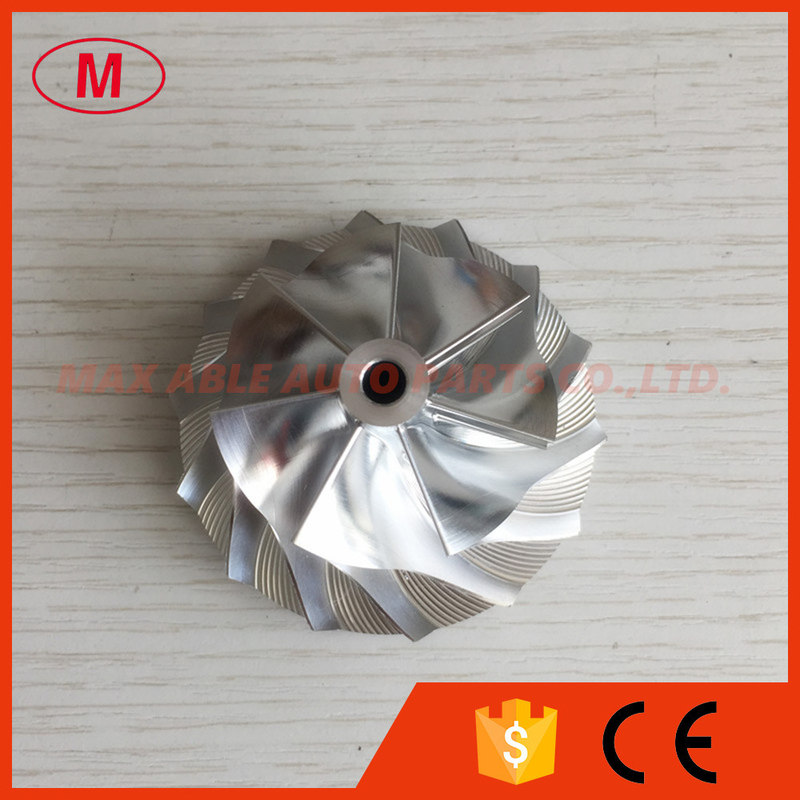

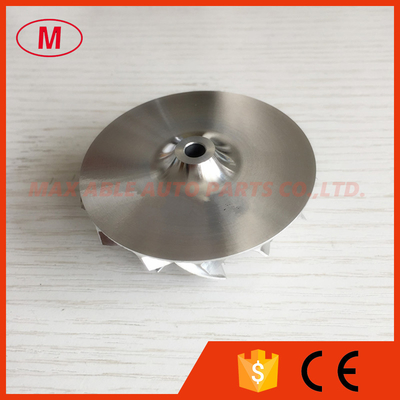

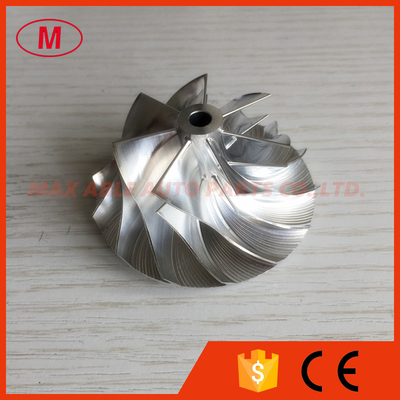

2.RHF5 42.00/59.00mm 7+7 blades turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:10.50mm
Inducer:42.00mm
exducer:59.00mm
Tapered tip exducer:60.89mm
Tip height :4.30mm
superback:4.30mm
Overall height:30.96mm
Bore size:5.10mm
bore type:through
Trailing Angle:55
Cutback:6.0
SP height Angle:-12.00
Blades height:24.56mm
Splitter Height:16.00mm
7+7 blades
forward rotation
Tapered tip Angle: 16 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
