Home ProductsBillet compressor wheel

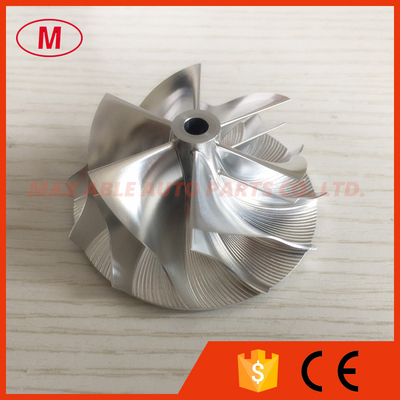

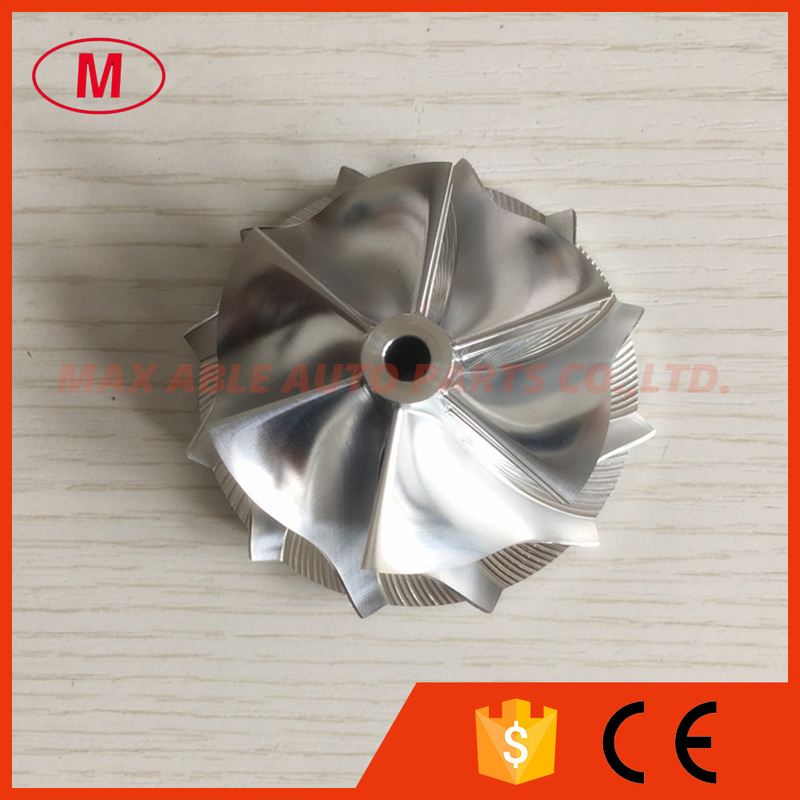

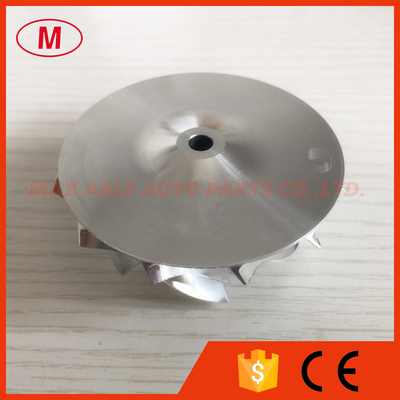

TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

    • TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04HL 20T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 20T forward
    2.TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49189-07220
    3.Size:
    Nose Diameter:9.99mm
    Inducer:47.04mm
    exducer:58.00mm
    Tapered tip exducer:61.86mm
    Tip height:4.34mm
    Superback:1.90mm
    bore size :5.00mm
    bore type:through
    Overall height:26.13mm
    Trailing Angle:60
    Cutback:0.0
    Blades height:22.09mm
    Splitter height:15.30mm
    SP height angle:-4.00
    6+6 blades forward
    Tapered tip Angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheelTD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheelTD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheelTD04HL 20T 49189-X 47.04/58.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
