| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:GT15-25 forward

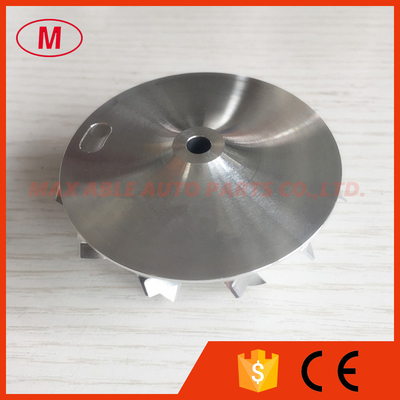

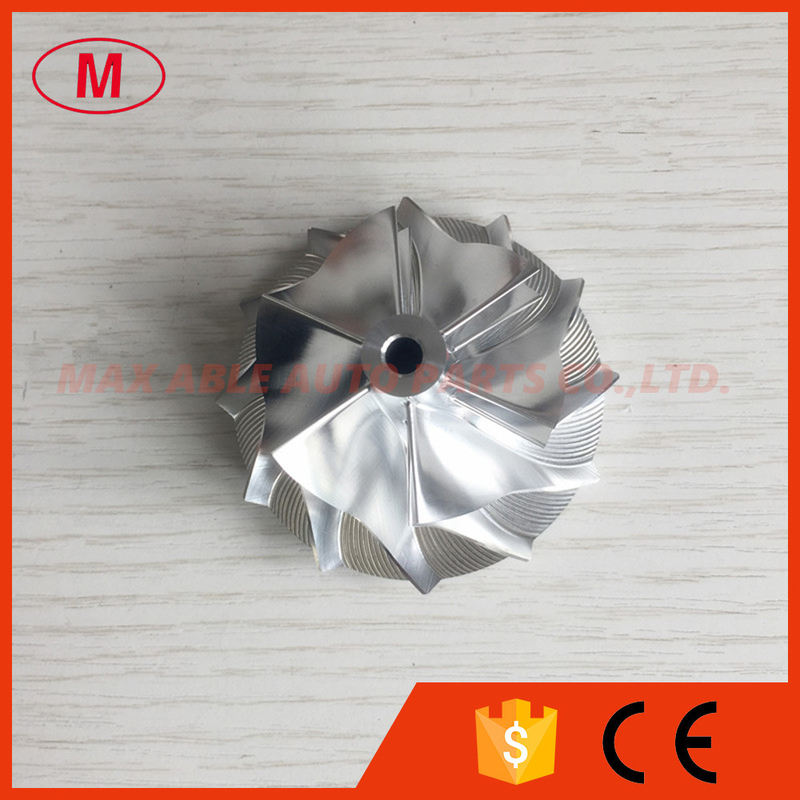

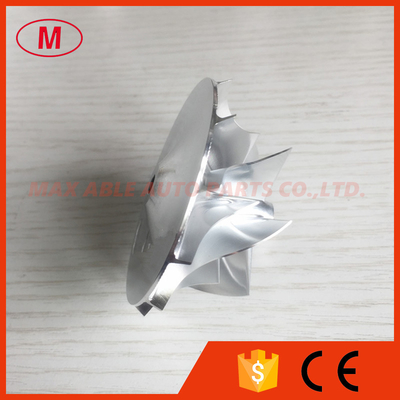

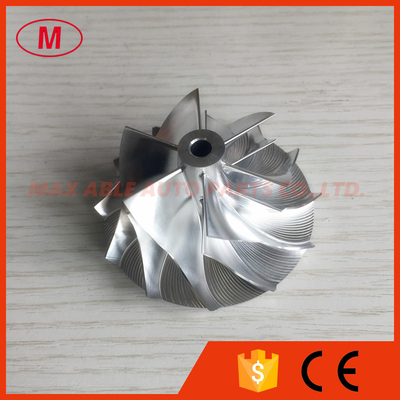

2.GT15-25 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 high performance billet/milling/aluminum 2618 compressor wheel for AUDI Q7/ VW Touareg/Mercedes ML350/GL350/S350 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009
3.Size:
Nose Diameter:11.51mm
inducer:44.39mm
Exduder:60.01mm
Tapered tip exducer:64.20mm
Tip height:4.63mm
Superback:3.79mm
Overall height:32.41mm
bore size :5.08mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
SP height angle:-4.00
Splitter height:16.95mm
Blades height:26.02mm
Forward rotation
6+6 blades
Tapered tip angle:30 degree
It is for OE compressor housing
Application:
758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced
The more models we also have.
