| Brand Name: | no |
| Certification: | ISO |
| Model Number: | KP39 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

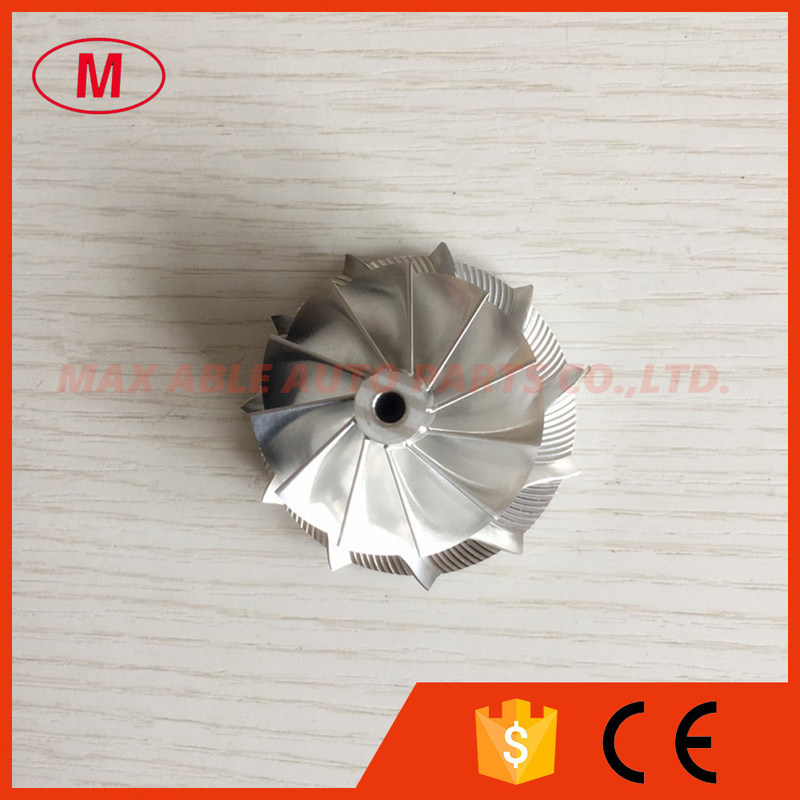

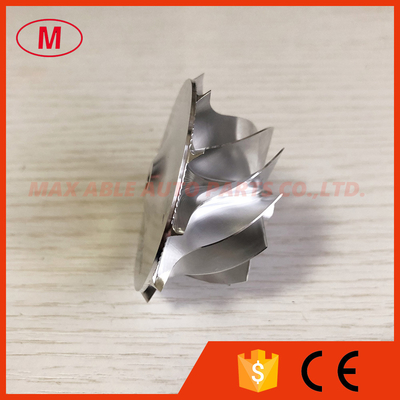

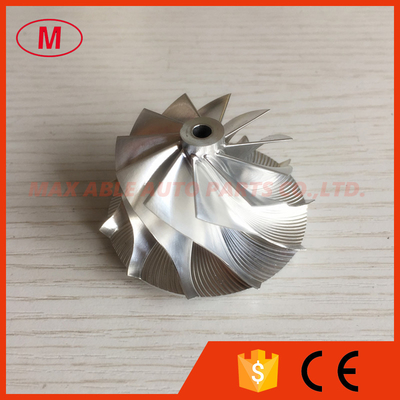

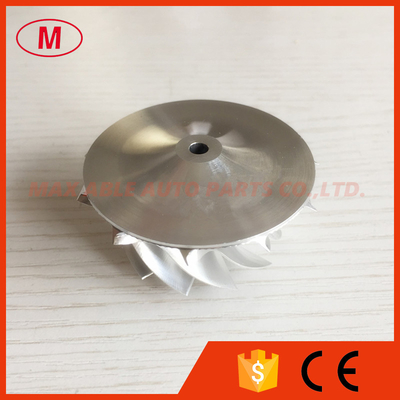

1. KP39 40.00/50.07mm 11+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
2.Size:
Nose diameter:9.60mm
Inducer :40.00mm
Exducer:50.07mm
Tapered tip exducer:54.54mm
Tip height:3.24mm
superback:3.05mm
Overall height:30.00mm
bore size:4.11mm
bore type:through
Trailing angle:50 degree
Cutback:6.0mm
Blades height:24.00mm
Sp height angle:0.00
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle: 45 degree
It is custom size ,please check carefully before buying
3.High quality and competitive price.
We have more size and we can produce as your requirement .
All the compressor wheels have been balanced.
