| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 52.00/68.01mm | Type: | Turbochargers |
|---|
1. MODEL:TD03 reverse

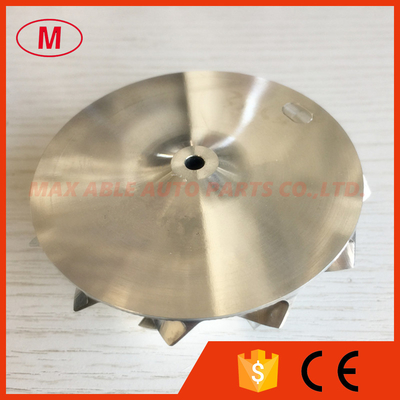

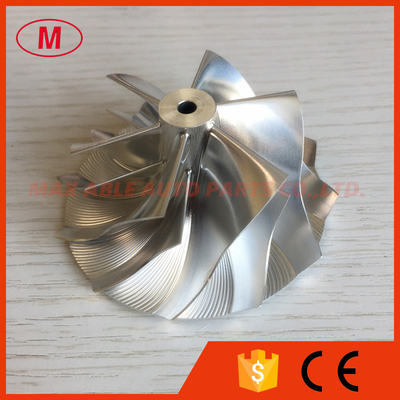

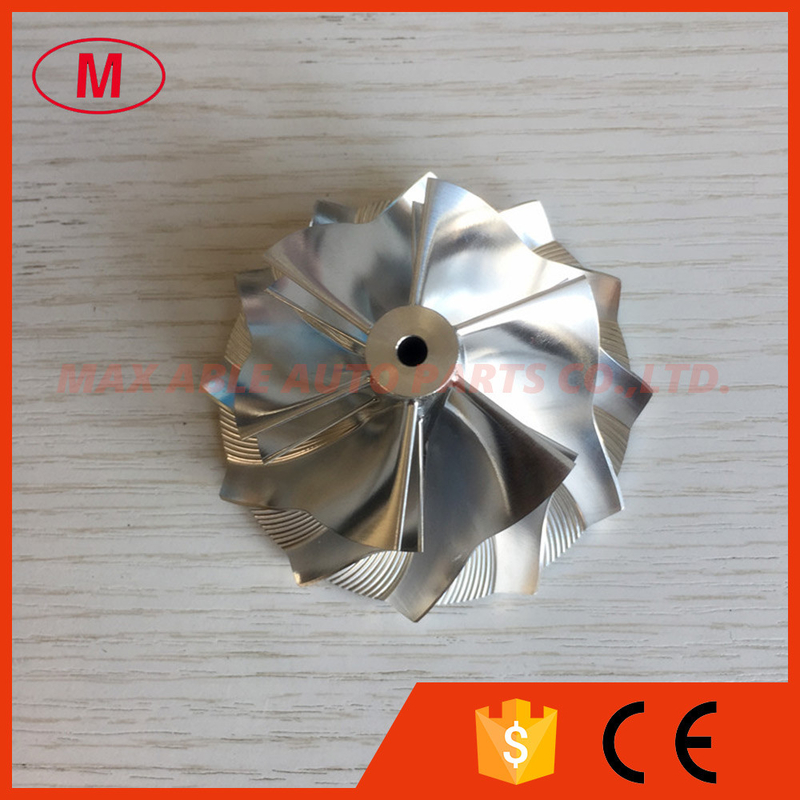

2.TD03 52.00/68.01mm 6+6 blades reverse high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.52mm
Inducer:52.00mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:1.53mm
Overall height:33.63mm
blade height:30.42mm
bore size :4.00mm
Trailing angle:45
Cutback:6.0
SP height angle:0.00
Splitter height:19.30mm
Tapered tip angle:30 degree
6+6 Blades
reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
