| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

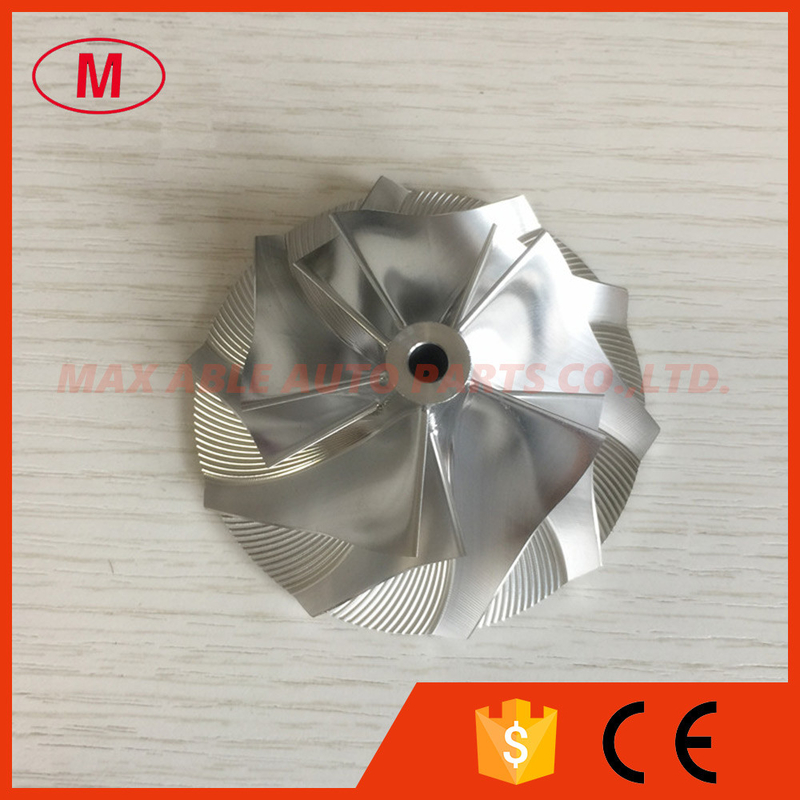

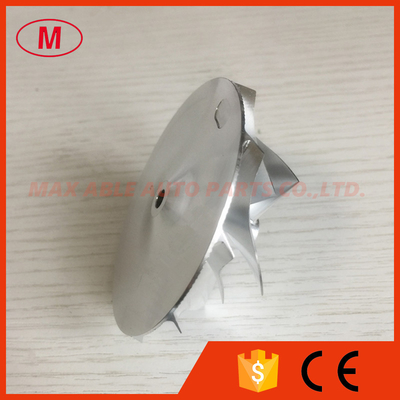

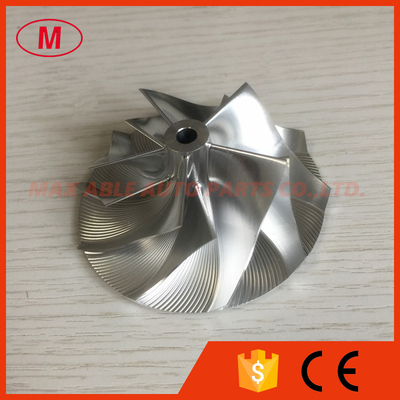

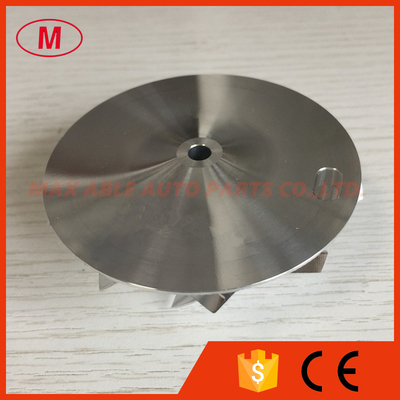

1.Model:TD04HL 16G reverse
3.Size:
Nose diamter:10.82mm
inducer:48.30mm
Exduder:68.00mm
Tapered tip exducer:70.19mm
Tip height:5.40mm
Superback:1.90mm
Overall height:27.20mm
bore size :5.00mm
bore type:through
Trailing Angle:50 degree
Cutback:0.0
SP Height angle:-9.30
Blades height:23.30mm
Splitter height:16.70mm
It is custom size,please check carefully before buying.
Tapered tip angle:30 degree
5+5 blades
reverse rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
