| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL FORWARD

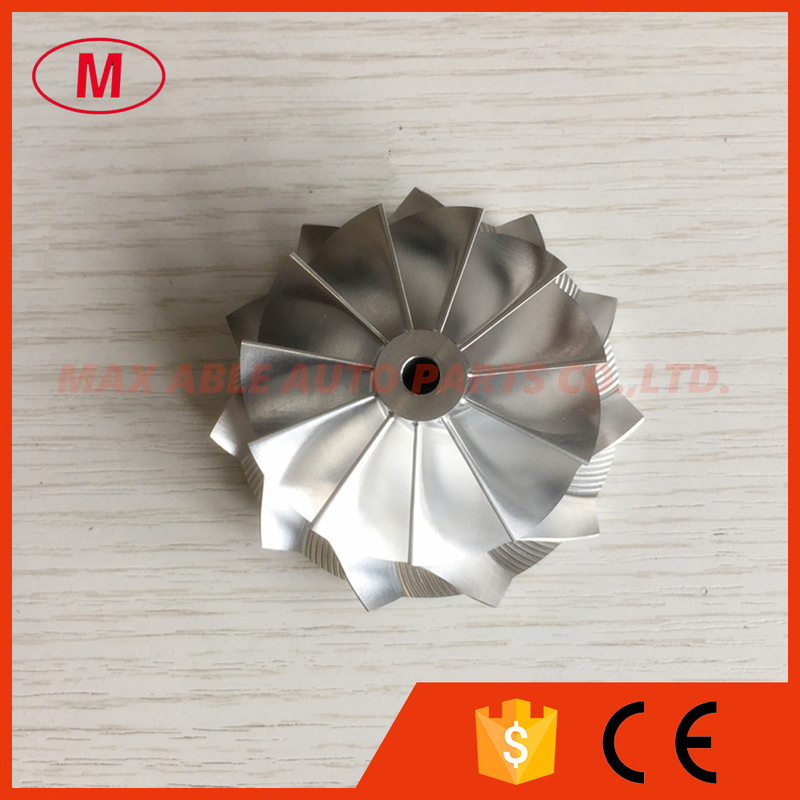

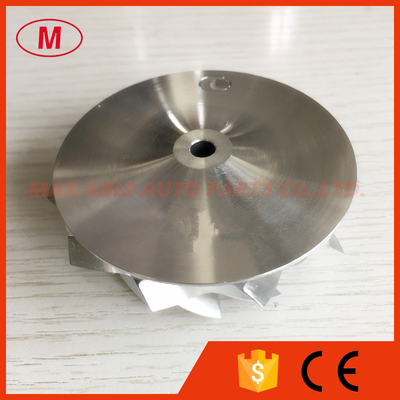

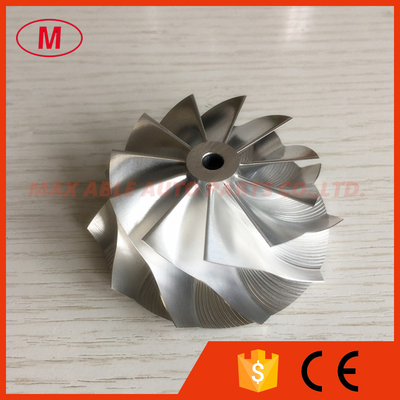

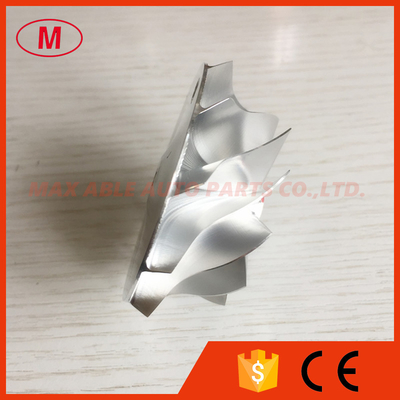

2.TD04HL 11+0 blades 49.62/61.01mm high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size
Nose diamter:12.46mm
inducer:49.62mm
Exduder:61.01mm
Tapered tip exducer:66.61mm
Tip height:5.85mm
Superback:1.90mm
Overall height:27.20mm
bore size :5.00mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00
Blade height:23.70mm
11+0 blades
Tapered tip Angle: 30 degree
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
