| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 40.10/52.19mm | Type: | Turbochargers |
|---|

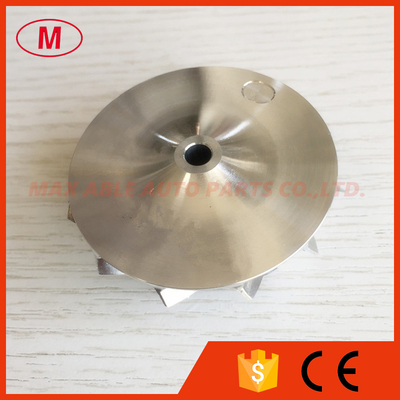

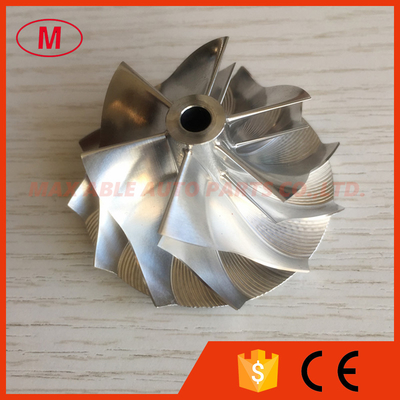

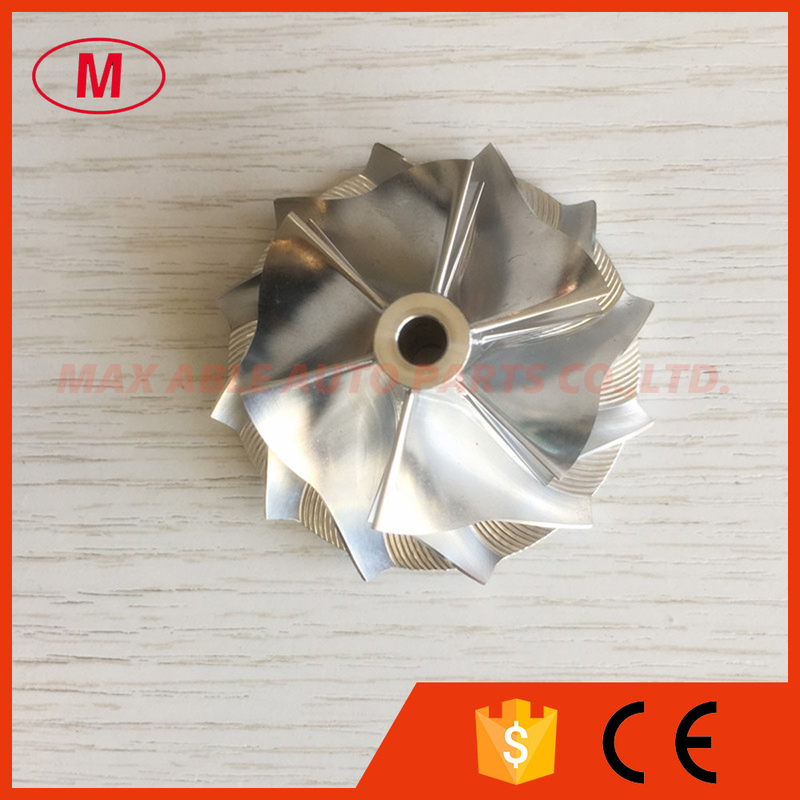

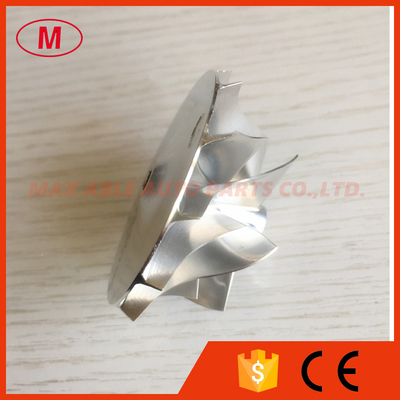

1.Model:GT15-25 forward
3.Size:
Nose diamter:10.18mm
inducer:40.10mm
Exduder:52.19mm
Tapered tip exducer:56.21mm
Tip height:4.48mm
Superback:2.39mm
Overall height:26.10mm
bore size :5.08mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
SP Height Angle:-10.20
Blades height:21.67mm
Splitter Height:15.20mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
