| Brand Name: | NO |
| Model Number: | T04B |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

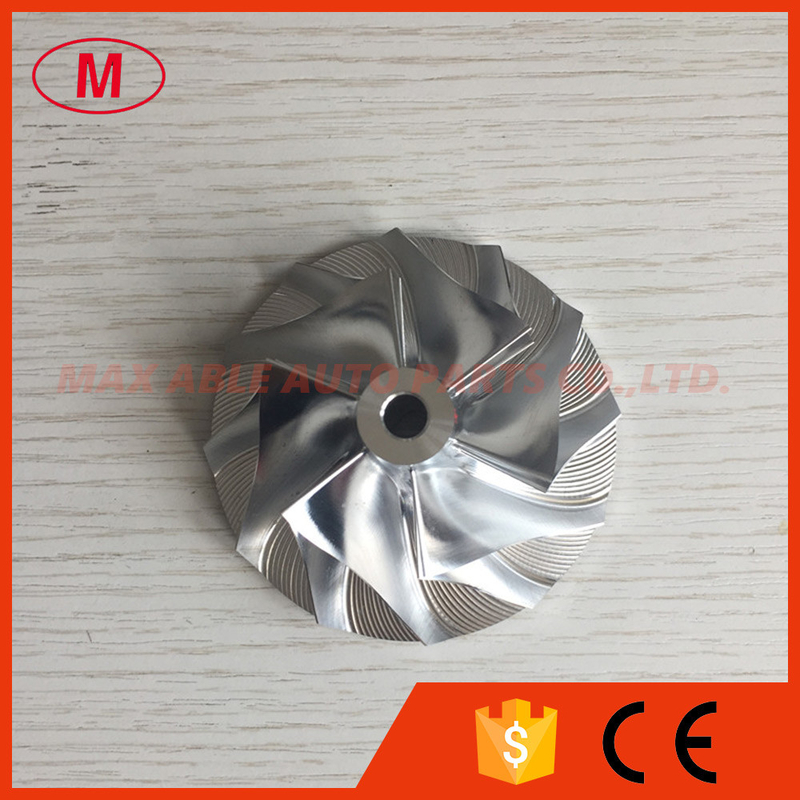

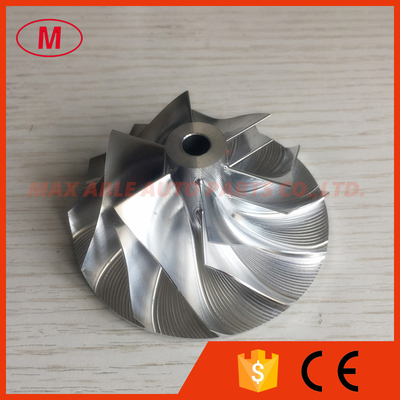

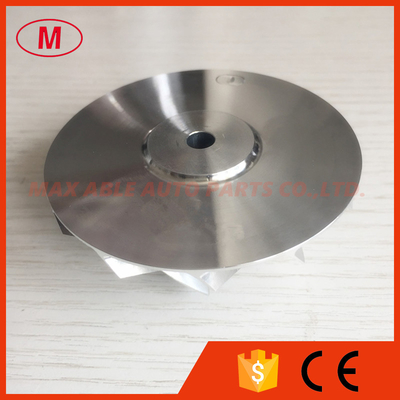

1.T04B 409179-0029 6137-82-8200 Turbocharger Milling/Aluminum 2618 /Billet compressor wheel 45.75/69.96mm 6+6 blades for Komatsu 409220-0002/409300-0001 Turbo CHRA/ Core for Komatsu 409220-0002/409300-0001
2.Size:
Nose Diameter:14.09mm
Inducer:45.75mm
Exducer:69.96mm
Tip height:6.62mm
Superback:1.68mm
Overall height:31.40mm
Bore size:6.35mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Blades height:25.08mm
Splitter height:16.15mm
Sp height angle:-5.50
6+6 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
3.If you want more details, please send email to me.We can do all we can to satisfy your needs.
4.High quality and competitive price and good service.
5.We can produce as your requirement.
All the billet compressor wheels have been balanced.
