| Brand Name: | NO |
| Model Number: | T04B |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

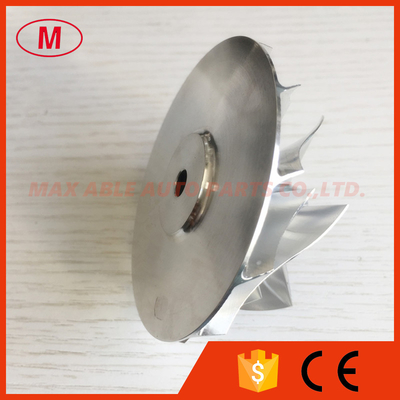

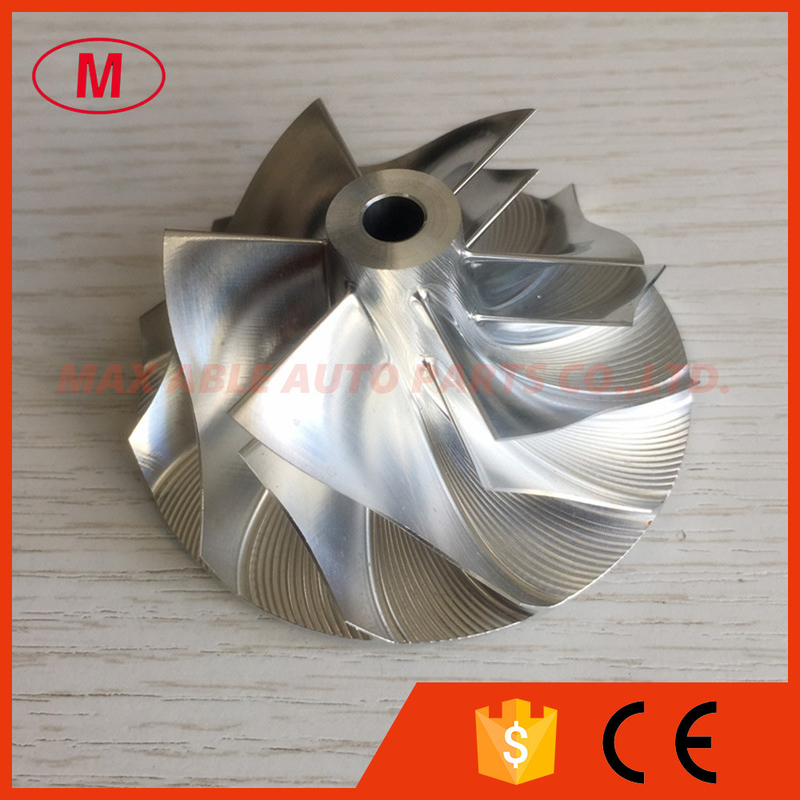

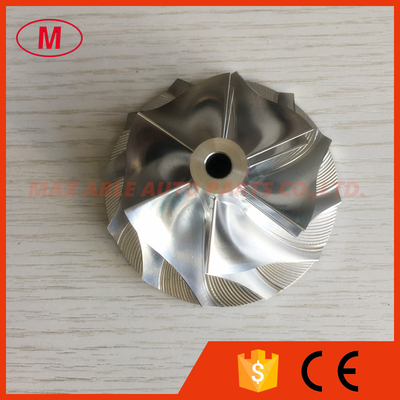

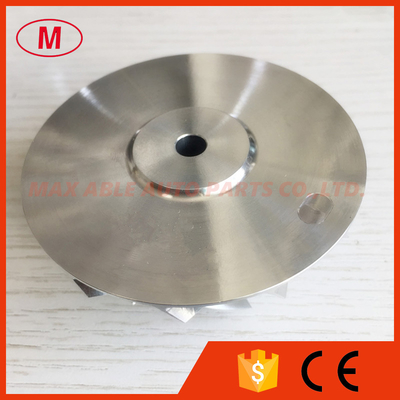

1.T04B 51.65/69.96mm 6+6 blades 409179-0023 14201-Z5601 Turbo Aluminum 2618 /Billet/milling compressor wheel for 409761-0002/465078-0007/465114-0004/465118-0001/465218-0002/465226-0004/465242-0008/465254-0001/465310-0002/465360-0002
2.Size:
Nose Diameter:14.10mm
Inducer:51.65mm
Exducer:69.96mm
Tip height:6.44mm
Superback:1.68mm
Overall height:31.40mm
Bore size:6.35mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP Height angle:-5.60
Blades height:25.08mm
Splitter height:16.40mm
6+6 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
Application:
409761-0002
465078-0007
465114-0004
465118-0001
465218-0002
465226-0004
465242-0008
465254-0001
465310-0002
465360-0002
3.If you want more details, please send email to me.We can do all we can to satisfy your needs.
4.High quality and competitive price and good service.
5.We can produce as your requirement.
All the billet compressor wheels have been balanced.
