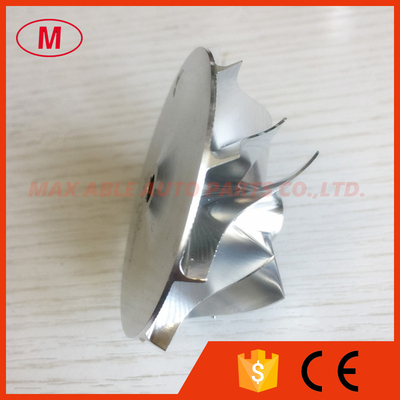

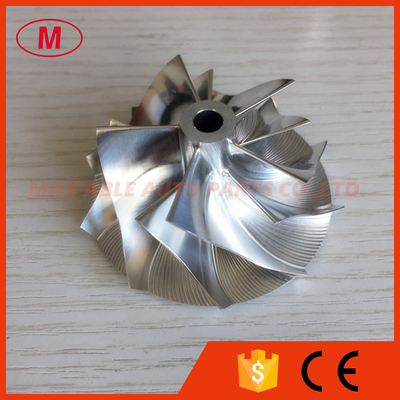

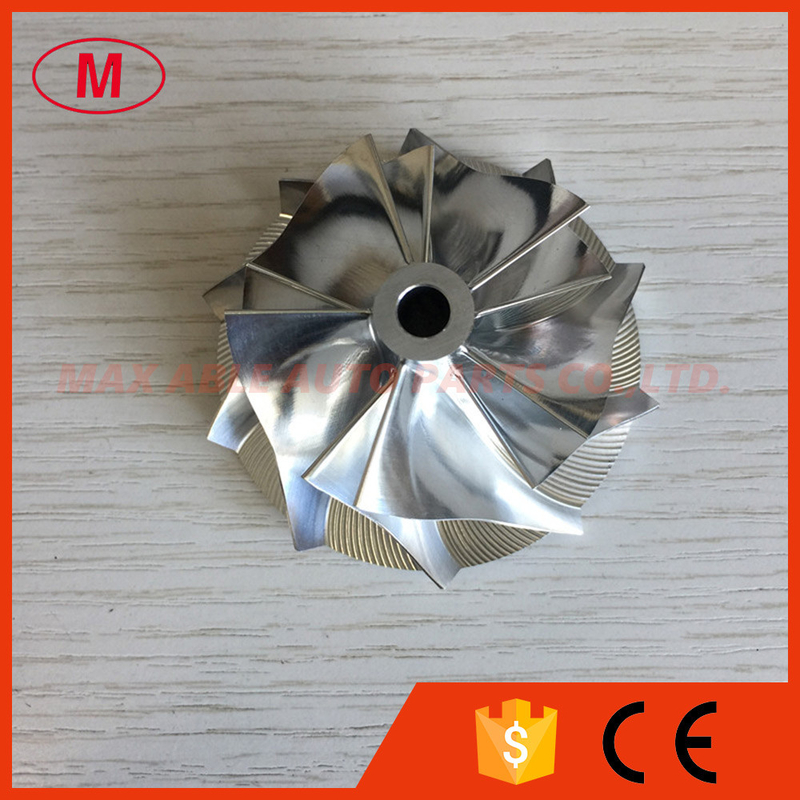

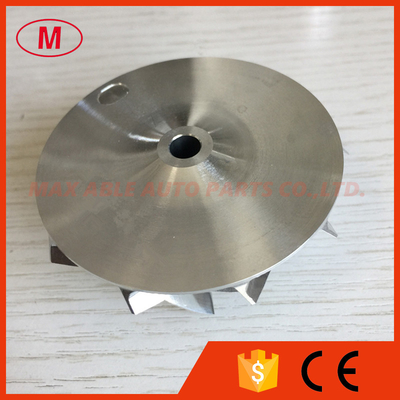

RHF5HB 5+5 blades 47.20/60.00mm 93844S High performance Turbocharger milling/aluminum 2618/billet compressor wheel

Product Details:

Brand Name:	NO
Model Number:	RHF5HB

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Size:	47.20/60.00mm	Type:	Turbochargers

1. MODEL:RHF5HB forward

2.RHF5HB 5+5 blades 47.20/60.00mm 93844S High performance Turbocharger Billet/milling/aluminum 2618compressor wheel for SUBARU EJ20 VF22

3.Size:

Nose diameter:11.68mm

Inducer:47.20mm

exducer:60.00mm

Tapered tip exducer:64.84mm

Tip height:5.19mm

Superback:1.85mm

Overall height:28.77mm

bore size :6.10mm

bore type:through

Trailing Angle:45 degree

Cutback:0.0

Blades height:24.71mm

Splitter height:19.00mm

Sp height angle:-11.00

5+5 blades

forward rotation

Tapered tip angle: 30 degree

Fit for OE compressor housing

Application:

VF22

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 5+5 blades 47.20/60.00mm 93844S High performance Turbocharger milling/aluminum 2618/billet compressor wheel
