| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NETRUAL PACKING |
| Delivery Time: | 3-4 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |
1.Model:K04 forward

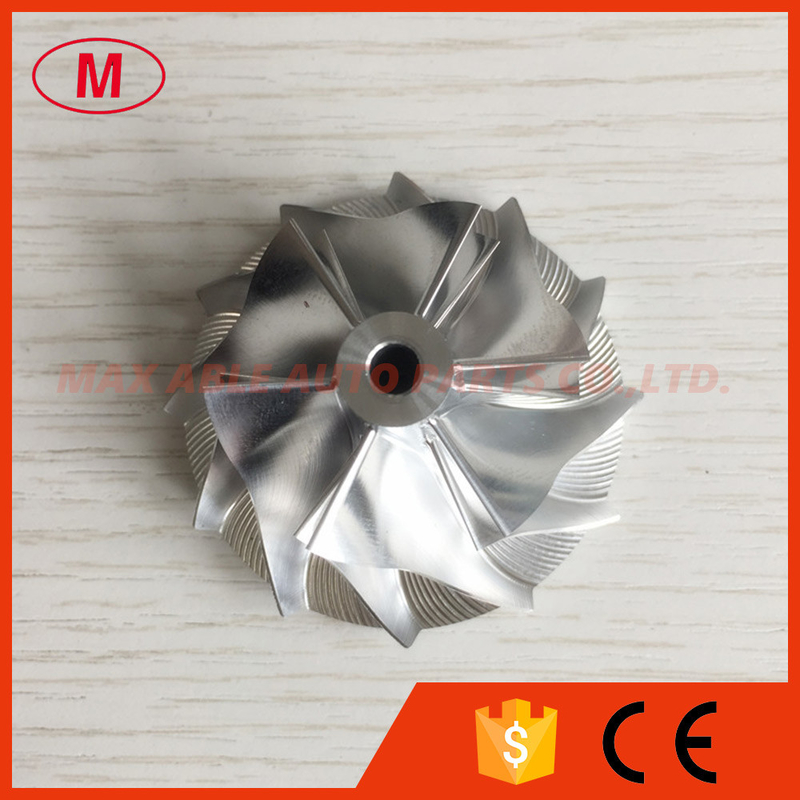

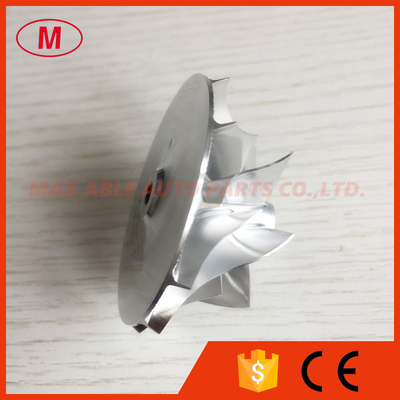

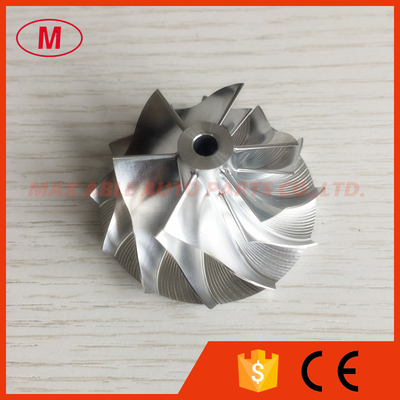

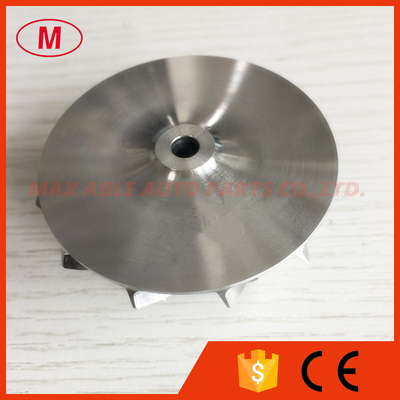

2.K04 36.00/49.97mm 5304-123-2018 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 5303-710-0502/5303-988-0005/5303-970-0005/5303-970-0022
3.SIZE:
Nose Diameter:10.61mm
inducer:36.00mm
Exducer:49.97mm
Tapered tip exducer:53.38mm
Tip height:3.95mm
Superback:1.80mm
Overall height:25.46mm
bore size :4.61mm
bore type:through
Trailing angle:75 degree
Cutback:0.0
SP height angle:-1.50
Splitter height:14.35mm
Blades height:21.49mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Application:
5303-710-0502
5303-988-0005
5303-970-0005
5303-970-0022
7.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheel have been balanced.
