1. MODEL:RHF5 forward

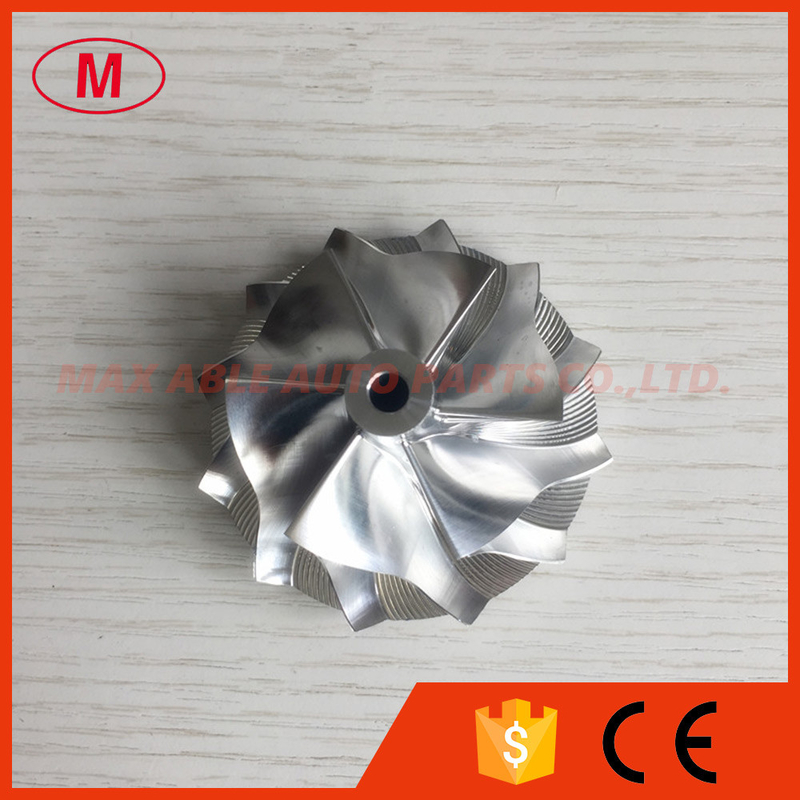

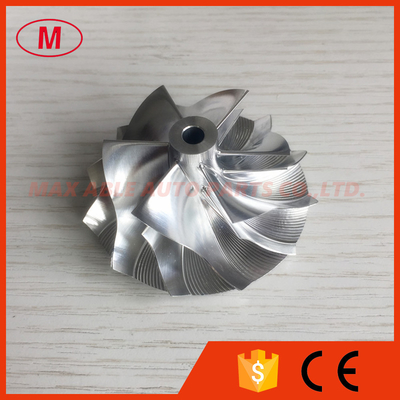

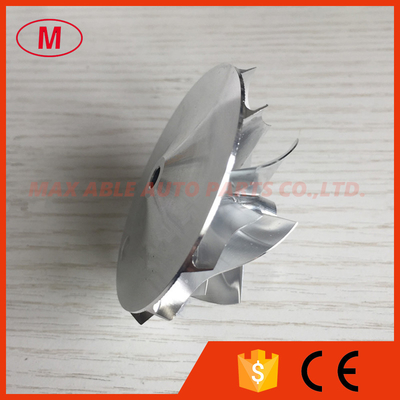

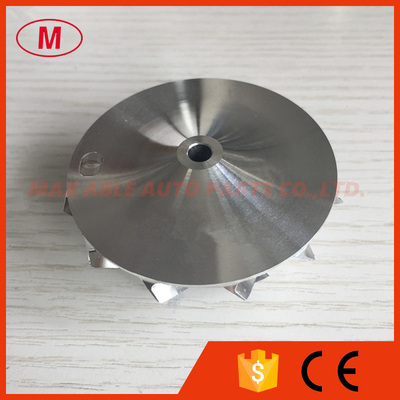

2.RHF5 44.95/59.00mm 6+6 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.50mm
Inducer:44.95mm
exducer:59.00mm
Tapered tip exducer:63.20mm
Tip height :4.64mm
superback:3.85mm
Overall height:29.70mm
Bore size:5.10mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0
SP height Angle:0.00
Blades height:21.21mm
Splitter Height:13.22mm
6+6 blades
forward rotation
Tapered tip Angle: 30 degree
It is for custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
