Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT3584R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT3584R Forward

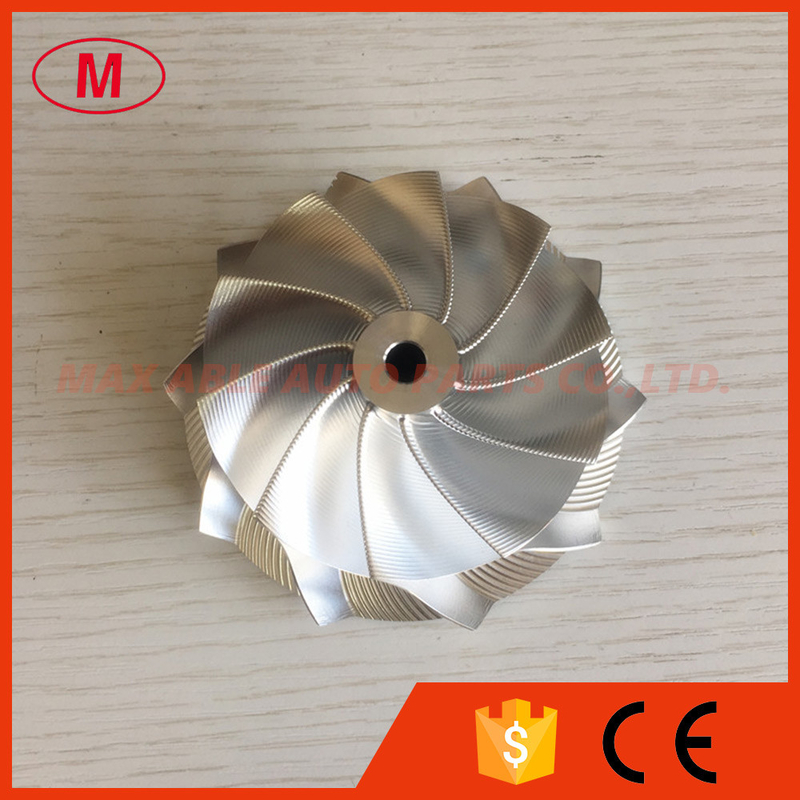

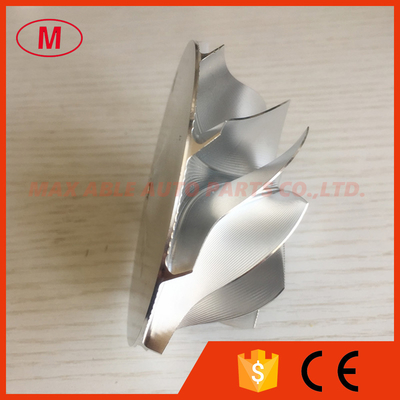

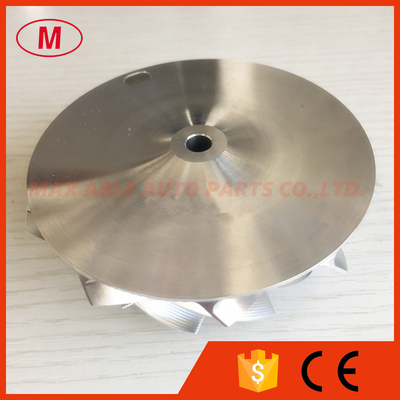

2.GT3584R 10+0 blades 67.30/84.44mm high performance air curve,point milling turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:16.50mm
Inducer:67.30mm
Exducer:84.44mm
Tapered tip exducer:90.35mm
Tip height:6.12mm
Superback:2.36mm
Overall height:38.62mm
Bore size:6.35mm
Trailing angle:45
Cutback:6.5
SP height angle:0.00
Splitter height:0.00
Blade height:34.00mm
10+0 blades
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
We can produce as your requirements.
All the compressor wheel have been balanced.
