1. MODEL:T76 forward

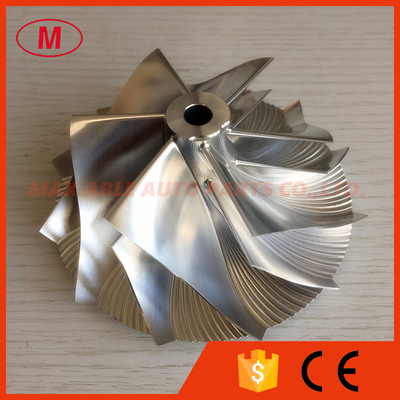

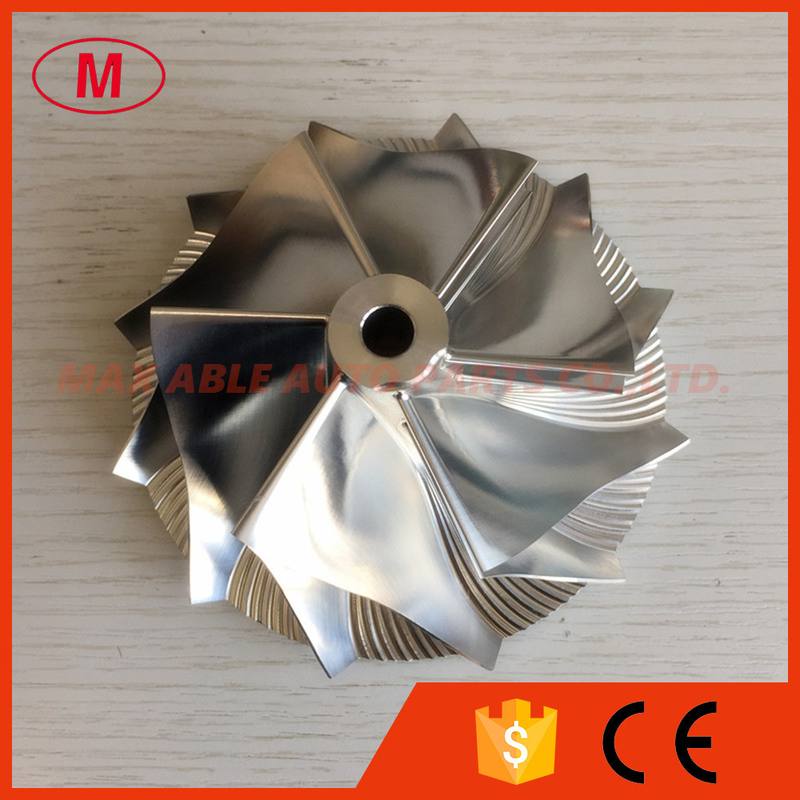

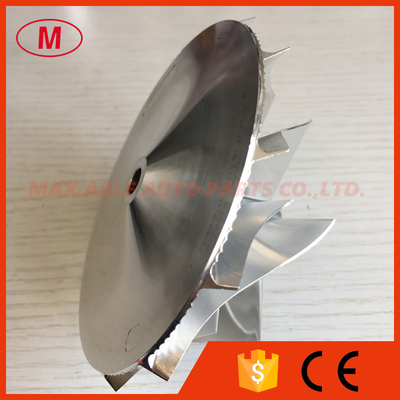

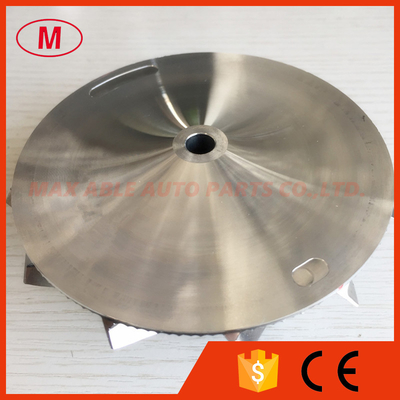

2.T76 6+6 blades 76.71/102.35mm turbo aluminum 2618/Billet/milling compressor wheel for racing
3.Size:
Nose diameter:17.98mm
Inducer:76.71mm
exducer:102.35mm
Tapered tip exducer:110.55mm
Tip height :6.34mm
superback:5.00mm
Overall height:46.70mm
Bore size:7.93mm
Trailing Angle:60
Cutback:6.00
Sp height Angle:7.20
Blade height:38.75mm
Splitter height:21.45
6+6 blades
Forward
Tapered tip angle:37.5 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
we can produce as your requirements.
ALL THE billet wheel have been balanced.
 |
