Home ProductsBillet compressor wheel

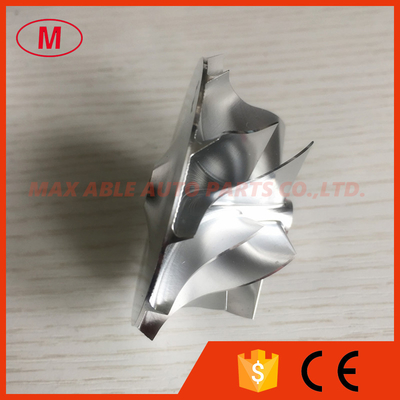

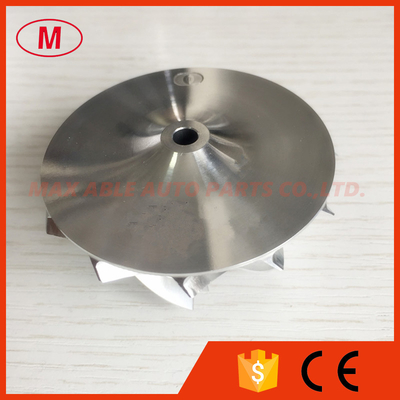

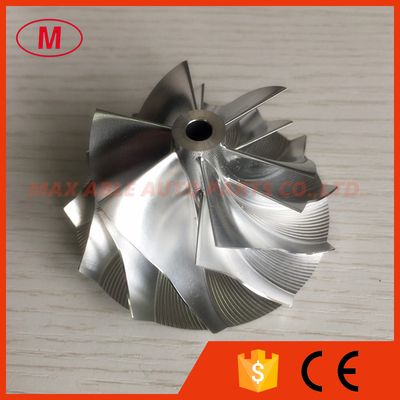

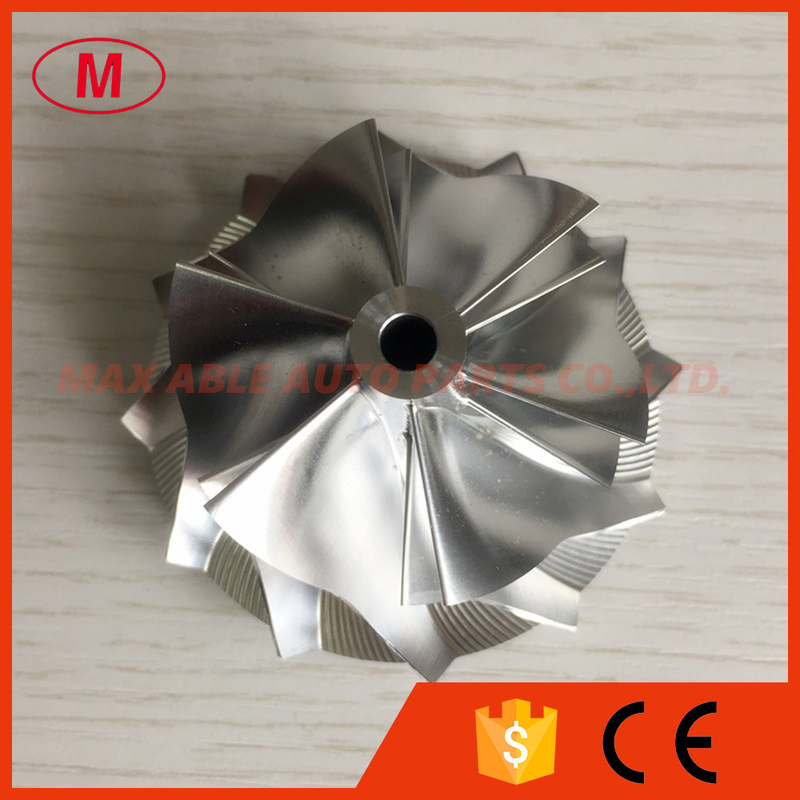

GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel

GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel

    • GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel
    • GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel
    • GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel
    • GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel
    • GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model: GT15-25 forward

    2.GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance Billet/milling/aluminum 2618 compressor wheel for Mercedes CLS 63 AMG ,Engine:M157 Dela 55 827056-0001/827054-0001
    3.Size:
    Nose diameter:10.60mm
    Inducer:46.50mm
    exducer:60.01mm
    Tapered tip exducer:64.12mm
    Tip height:4.56mm
    Superback:3.79mm
    bore size :5.08mm
    bore type:through
    Overall height:32.40mm
    Cutback:3.0mm
    Trailing Angle:50 degree
    SP Height angle:-5.00
    Blades height:26.33mm
    Splitter height:18.00mm
    6+6 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:30 degree
    Application:
    827056-0001
    827054-0001

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    GT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheelGT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheelGT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheelGT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheelGT15-25 784369-0001 6+6 blades 46.50/60.01mm high Performance milling/aluminum 2618/billet compressor wheel
