| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | racing |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

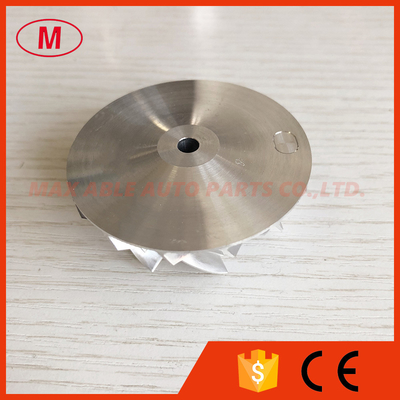

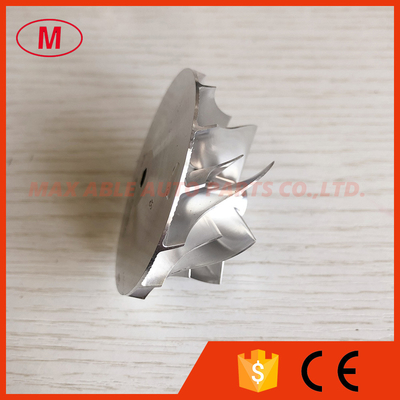

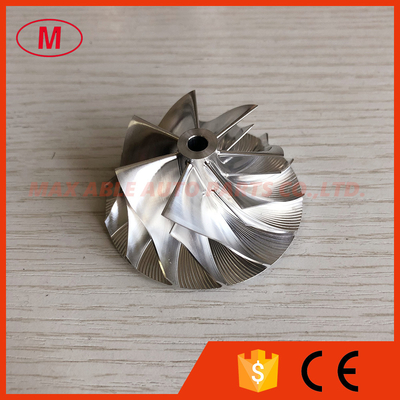

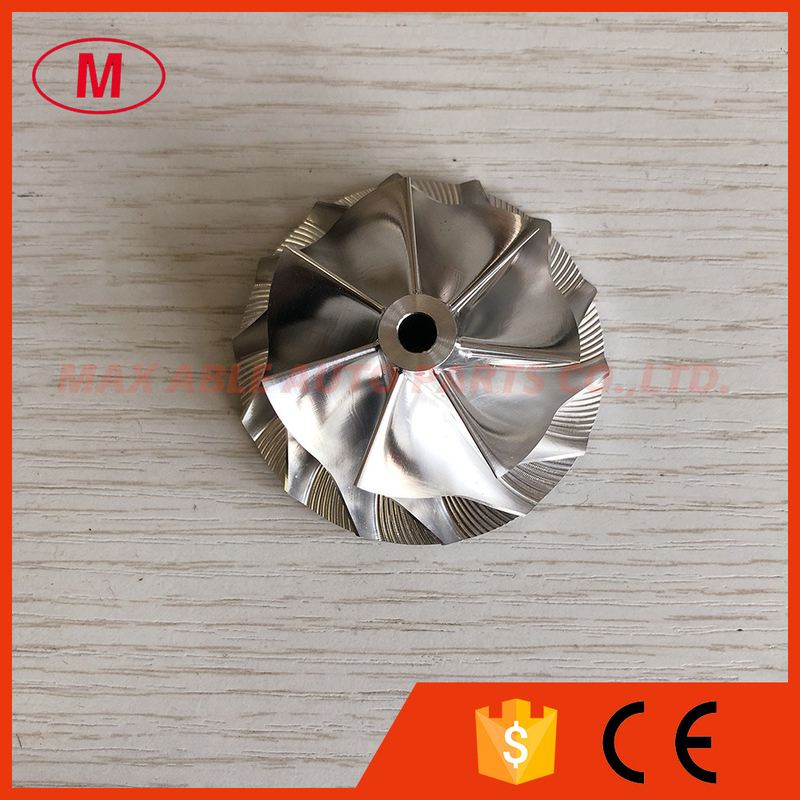

1.Model:TD04HL FOWARD
3.Size:
Nose diamter:10.04mm
inducer:42.00mm
Exduder:56.00mm
Tip height:5.00mm
Superback:1.90mm
Overall height:26.13mm
bore size :5.00mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
SP height angle:-7.10
Splitter height:14.70mm
Blades height:22.40mm
It is custom size,please check carefully before buying.
7+7 blades
Forward rotation
Tapered tip angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
