| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL FORWARD

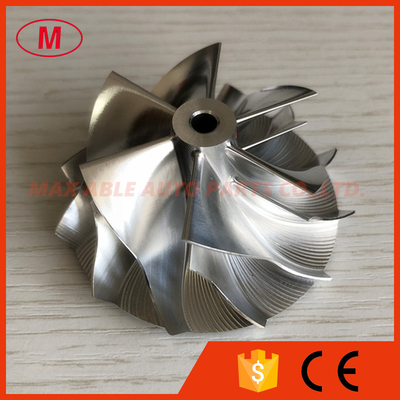

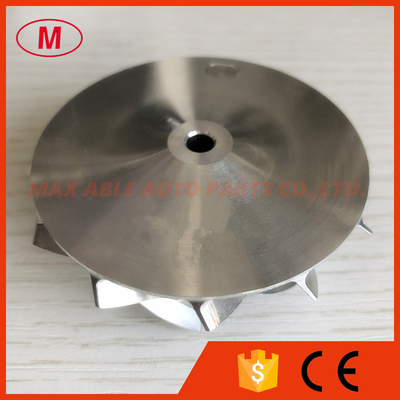

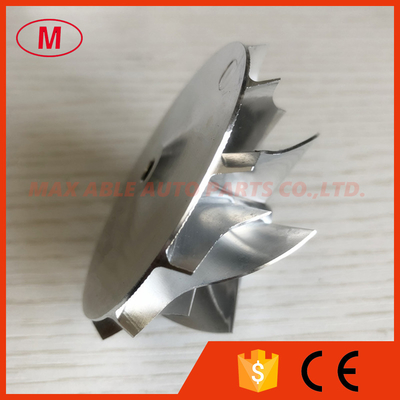

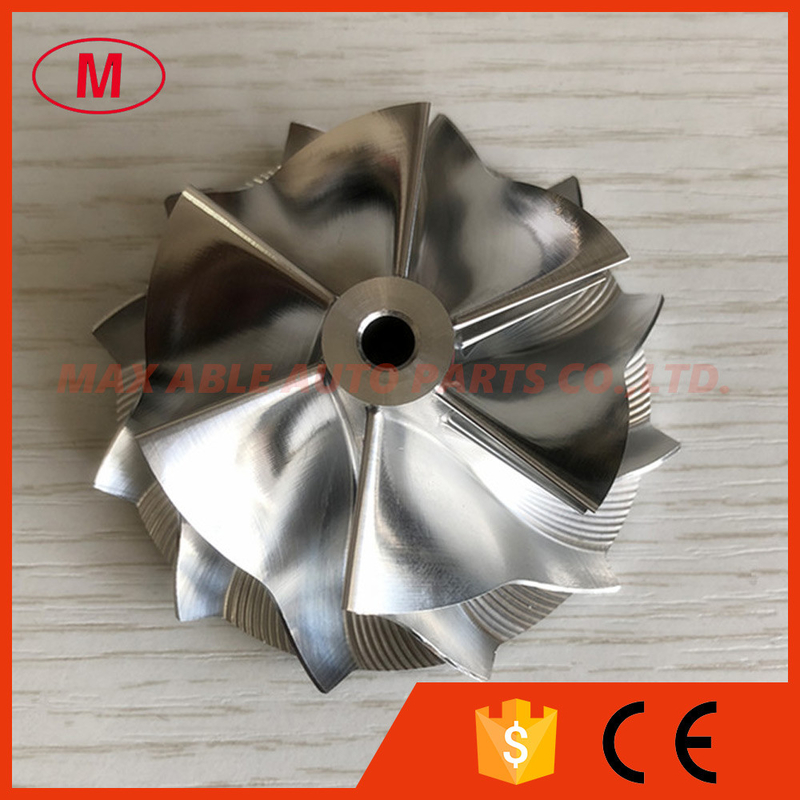

2.TD04HL 6+6 blades 49.62/61.01mm high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size
Nose diamter:12.46mm
inducer:49.62mm
Exduder:61.01mm
Tapered tip:66.61mm
Tip height:5.00mm
Superback:1.90mm
Overall height:27.20mm
bore size :5.00mm
Trailing Angle:60
Cutback:0.0
SP height angle:0.00
Splitter height:14.70
Blade height:23.70mm
6+6 blades
Tapered tip Angle: 35 degree
foward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
