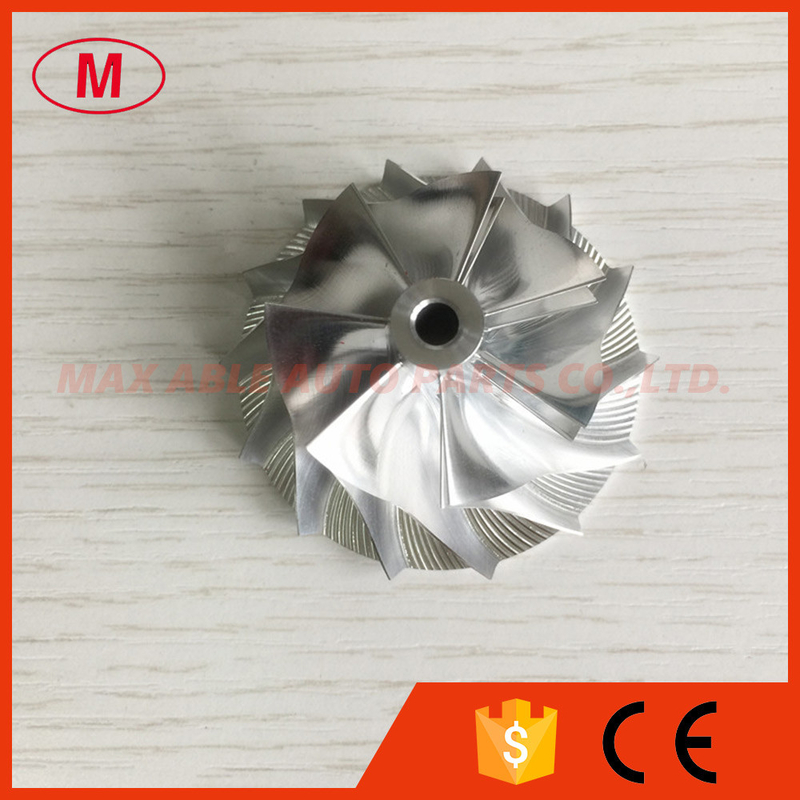

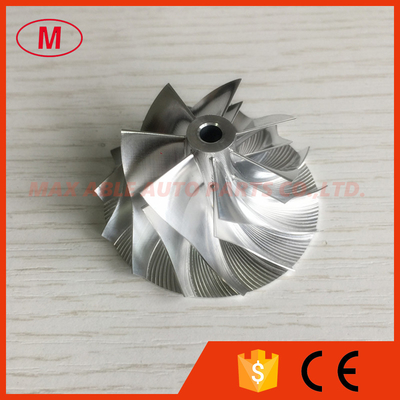

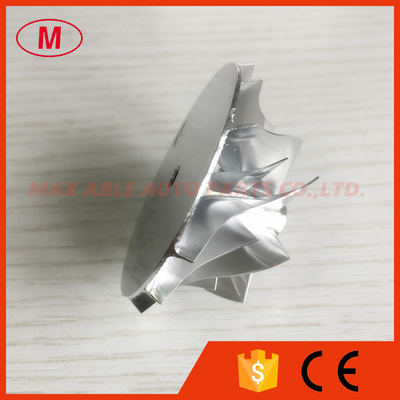

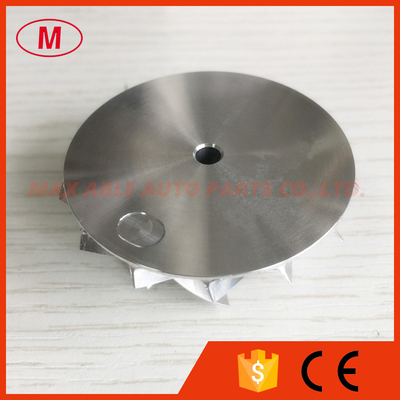

KP39 7+7 blades 33.50/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 5439-970-0045

Model Number:	KP39

Contact Now

Detailed Product Description

1. MODEL:KP39 forward

2.KP39 7+7 blades 33.50/46.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel for BMW M57D30TOP Twin Turbo 5439-970-0045

3.Size:

Nose diameter:9.12mm

Inducer:33.50mm

exducer:46.00mm

Tapered tip exducer:49.24mm

Tip height:3.81mm

Superback:0.00mm

bore size :4.10mm

bore type:through

Overall height:21.82mm

Cutback:0.0mm

Trailing Angle:65 degree

SP height angle:-7.40

Blades height:20.07mm

Splitter height:13.80mm

7+7 blades forward

Fit for OE compressor housing

Tapered tip Angle:30 degree

Application:

5439-970-0045 53499700045

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced
