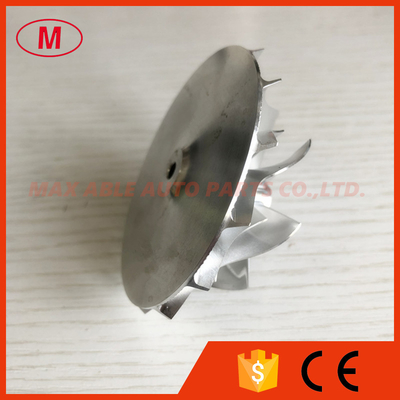

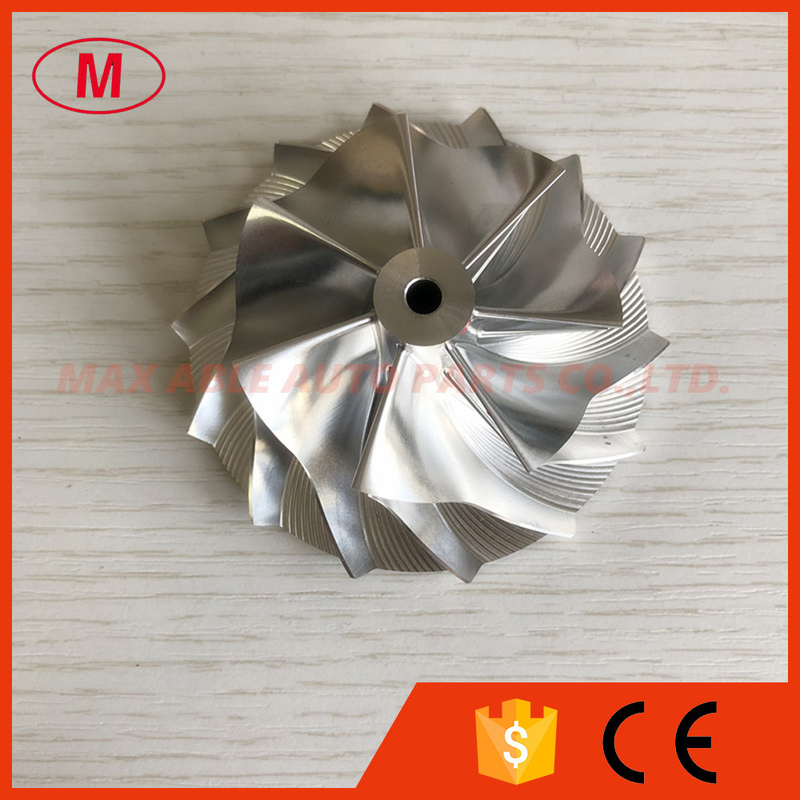

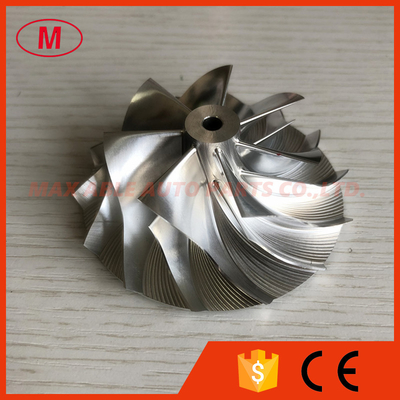

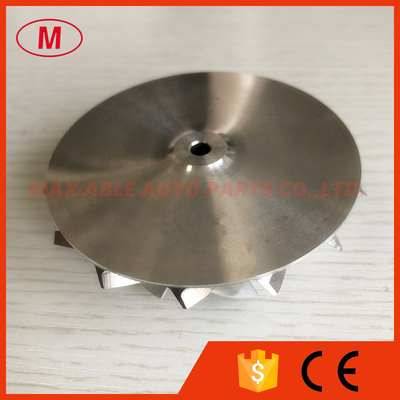

K04 52.00/71.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	K04

Contact Now

Detailed Product Description

Size:	52.00/71.00mm	Type:	Turbochargers

1. MODEL:K04 forward

2.K04 52.00/71.00mm 7+7 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.00mm

Inducer:52.00mm

exducer:71.00mm

Tapered tio exducer:75.16mm

Tip height:4.60mm

Superback:1.80mm

bore size :4.61mm

bore type:through

Overall height:28.00mm

Cutback:0.0

Trailing Angle:60

Blades height:23.70mm

sp Height angle:-1.50

Splitter height:15.00mm

7+7 blades

forward rotation

It is for custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

K04 52.00/71.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Contact Details

Max Able Auto Parts Co.,Ltd.

Contact Person: Mr. David

Tel: 86-21-61119327

Fax: 86-21-61119327
