| Brand Name: | no |
| Certification: | ISO |
| Model Number: | TD05H 18G reverse |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

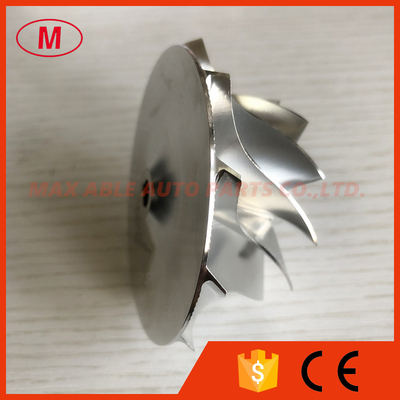

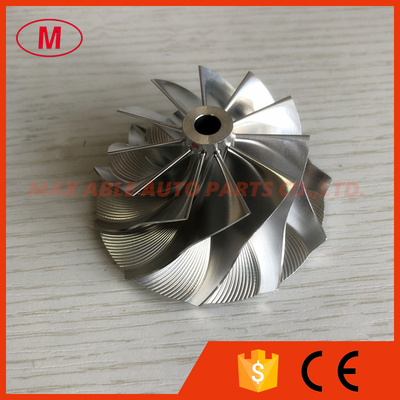

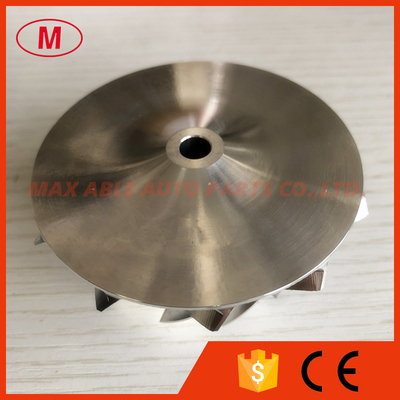

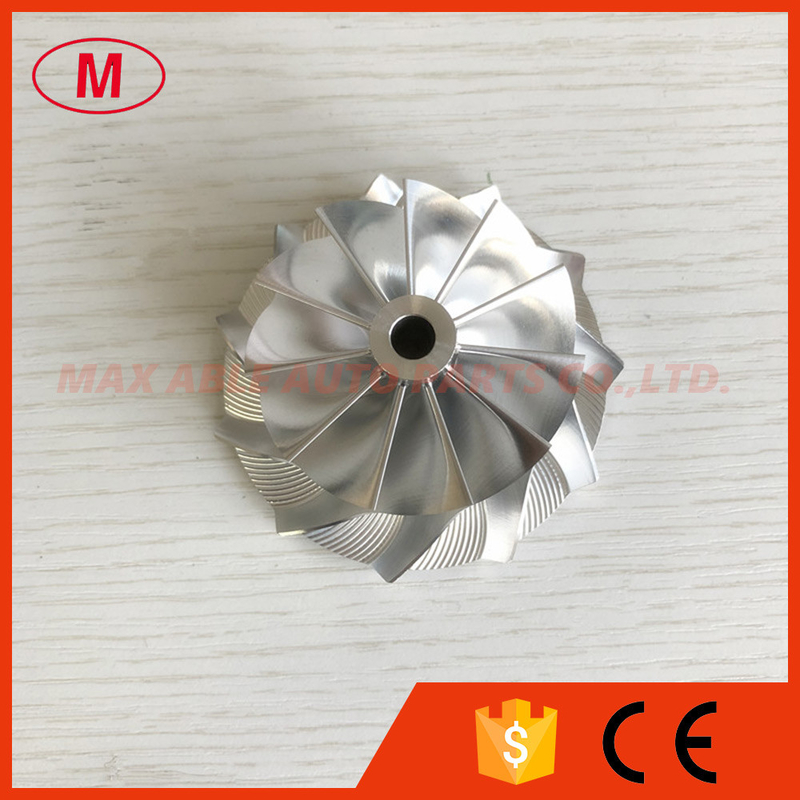

1.Model:TD05H-18G reverse
3.Size:
Nose diamter:12.80mm
inducer:50.39mm
Exduder:68.01mm
Tapered tip:72.46mm
Tip height:4.85mm
Superback:2.90mm
Overall height:35.20mm
bore size :6.50mm
Trailing angle:45
Cutback:0.00
Blade height:29.20mm
SP height angle:0.00
Splitter height:0.00
11+0 blades
reverse rotation
Tapered tip angle: 30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
