| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K04 forward

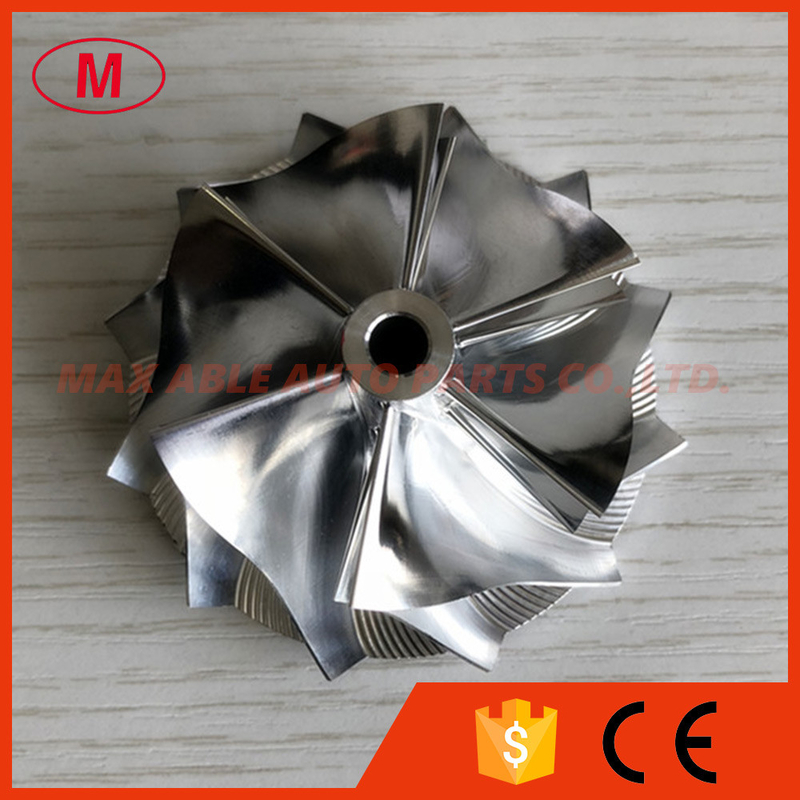

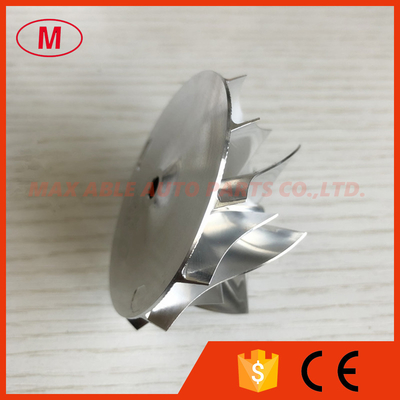

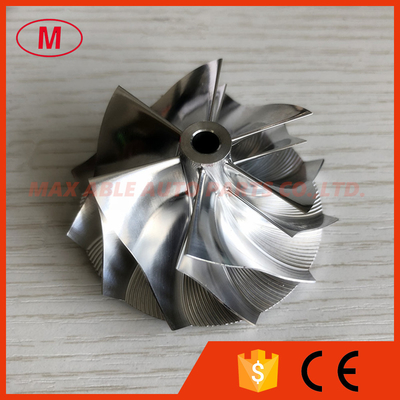

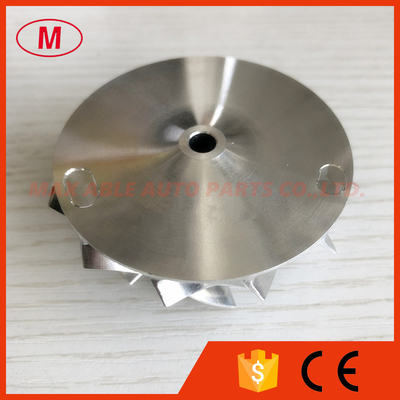

2.K04 48.00/60.00mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:10.50mm
inducer:48.00mm
Exduder:60.00mm
Tapered tip exducer:65.29mm
Tip height:5.58mm
Superback:1.53mm
Overall height:28.90mm
bore size :5.50mm
bore type:through
Trailing angle:60 degree
Cutback:-3.0
Sp height angle:-8.00
Splitter height:18.40mm
Blades height:26.18mm
6+6 blades
Forward rotation
Tapred tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
