| Brand Name: | NO |
| Model Number: | GTA15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 41.52/56.02mm | Type: | Turbochargers |
|---|
1.Model:GT15-25 Forward

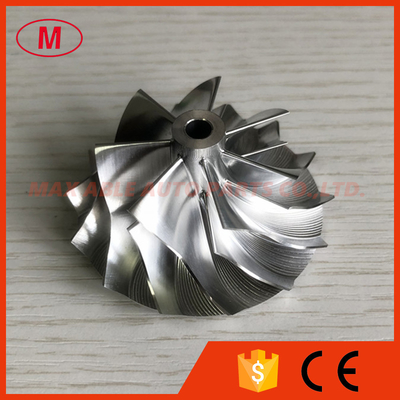

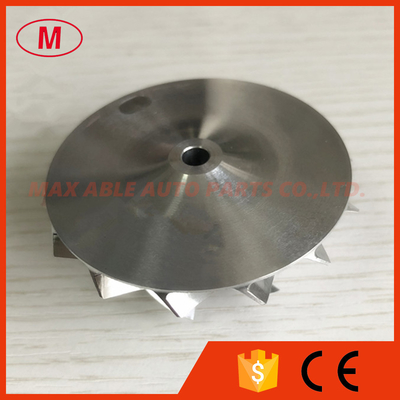

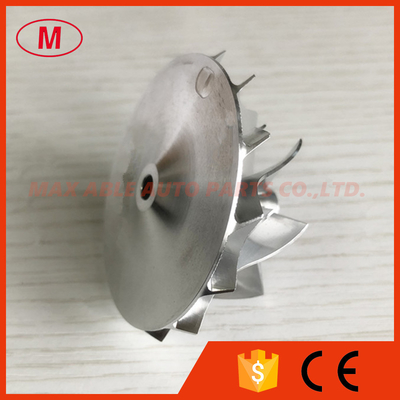

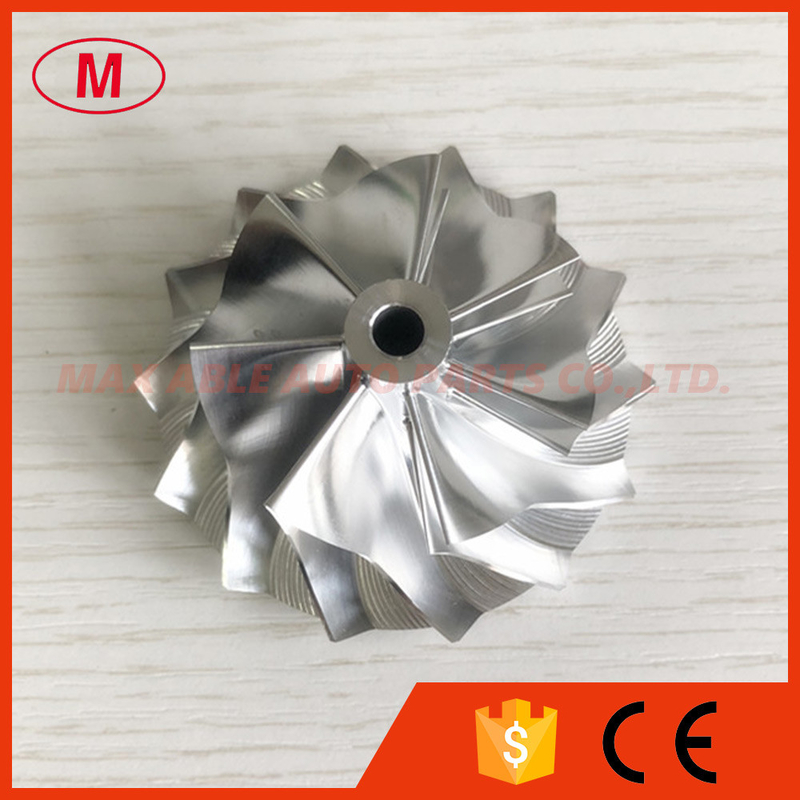

2.GT15-25 701374-0001/6 41.52/56.02mm 1102-025-400 7+7 Blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 454191-0001/454191-0003/454191-0004/454191-0005/454191-0006/454191-0007/454191-0008/454191-0009/454191-0010/454191-0011/454191-0012/454191-0013/454191-0015/454191-0017
3.Size:
Nose diameter:10.42mm
Inducer:41.52mm
Exducer:56.02mm
Tapered tip exducer :60.31mm
Tip height:4.71mm
Superback:2.39mm
Overall height:29.30mm
Bore size:5.08mm
bore type:through
Cutback:4.0
Trailing angle:45 degree
Blades height:23.25mm
SP height angle:0.00
Splitter height:14.00mm
7+7 blades
Forward rotation
It is for OE compressor housing
Tapered tip angle:30 degree
Application:
454191-0001
454191-0003
454191-0004
454191-0005
454191-0006
454191-0007
454191-0008
454191-0009
454191-0010
454191-0011
454191-0012
454191-0013
454191-0015
454191-0017
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
