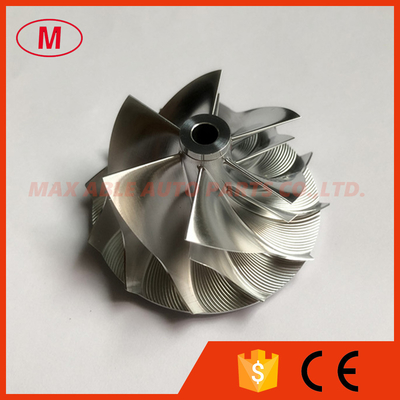

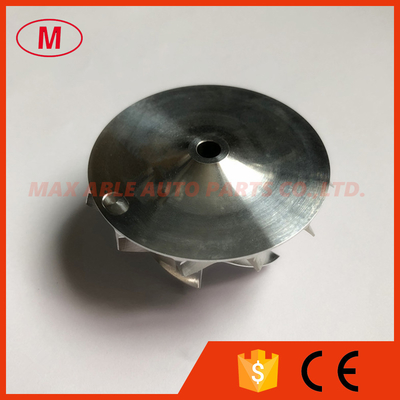

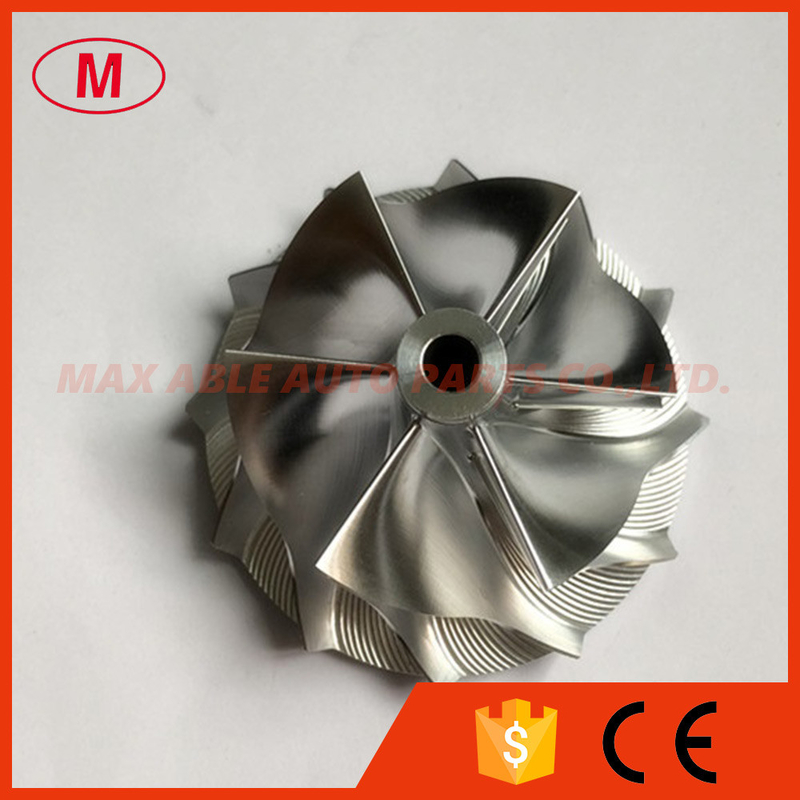

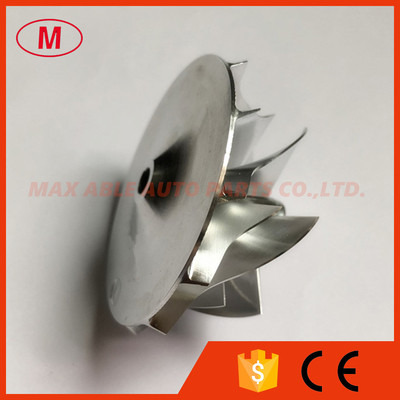

RHF5HB 49.62/61.98mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for VF30/VF34 Upgrade

Brand Name:	NO
Model Number:	RHF5HB

Contact Now

Detailed Product Description

1. MODEL:RHF5HB forward

2.RHF5HB 49.62/61.98mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF30/VF34 Upgrade

3.Size:

Nose diameter:12.19mm

Inducer:49.62mm

exducer:61.98mm

Tapered tip exducer:65.90mm

Tip height:4.95mm

Superback:3.71mm

bore size :6.10mm

bore type:through

Overall height:34.00mm

Trailing angle:60 degree

Cutback:0.0

Sp height Angle:-3.50

Splitter height:17.00

Tapered tip Angle:27 degree

Blade height:25.72mm

6+6 blades forward

It is Custom size,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 49.62/61.98mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for VF30/VF34 Upgrade
