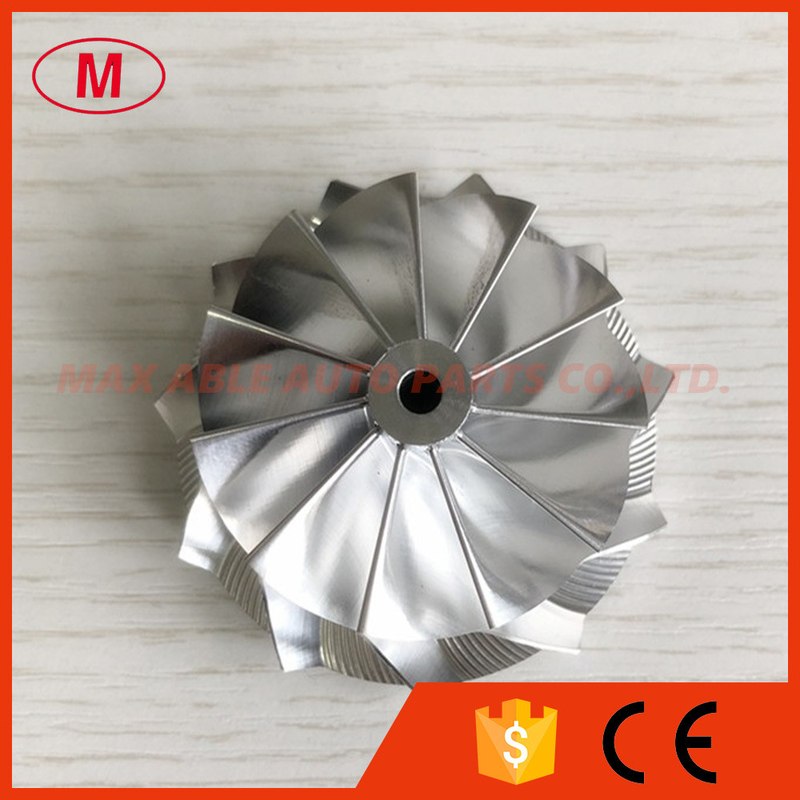

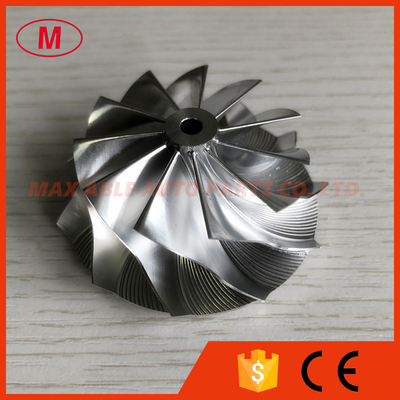

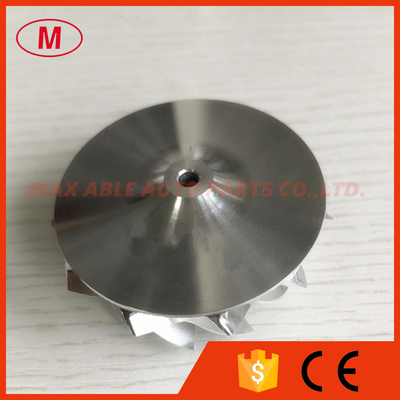

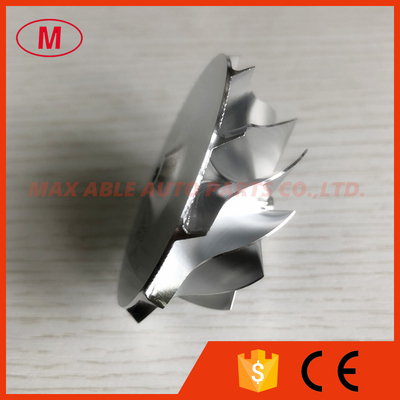

KP39 45.00/55.00mm 11+0 blades Turbo milling/aluminum 2618/billet compressor wheel

Model Number:	KP39

Contact Now

Detailed Product Description

1. MODEL:KP39 forward

2.KP39 45.00/55.00mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.89mm

Inducer:45.00mm

exducer:55.00mm

Tapered tip exducer:59.04mm

Tip height:4.50mm

Superback:2.50mm

bore size :4.10mm

bore type:through

Overall height:25.50mm

Trailling angle:50 degree

Cutback:6.0

Tapered tip Angle:30 degree

SP height angle:0.00

Splitter height:0.00

Blade height:21.10mm

11+0 blades forward

It is for Custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

KP39 45.00/55.00mm 11+0 blades Turbo milling/aluminum 2618/billet compressor wheel
