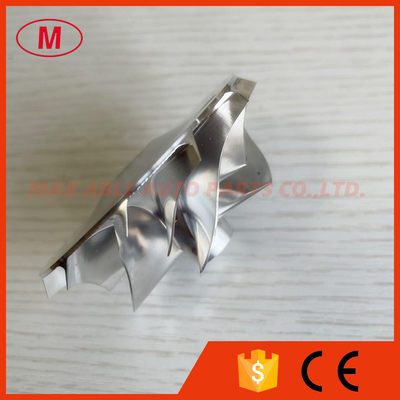

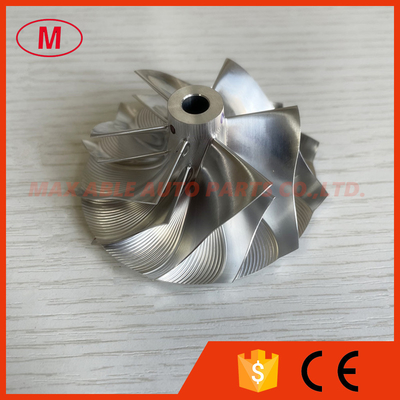

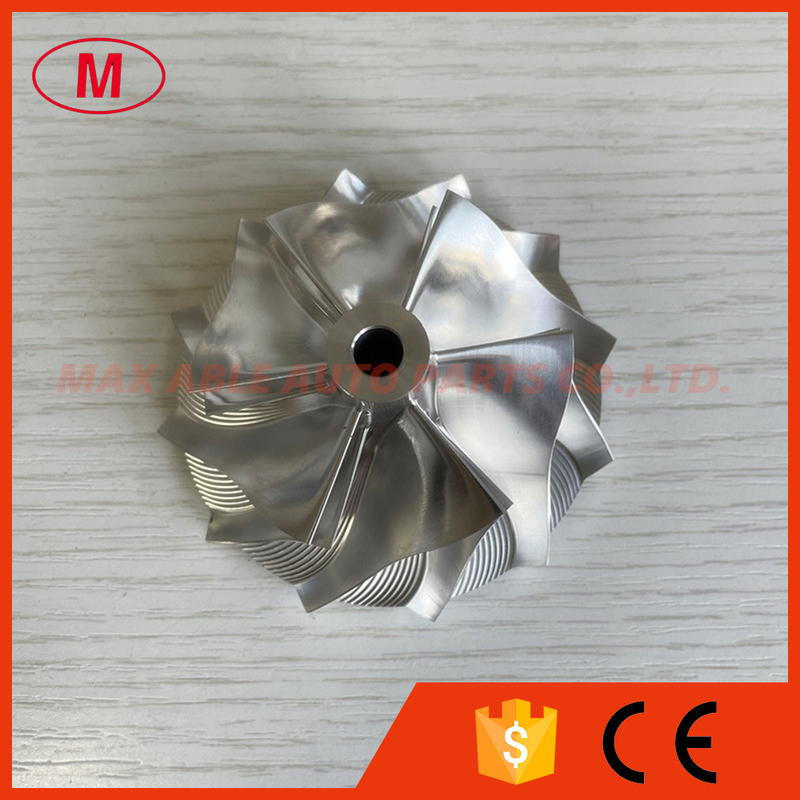

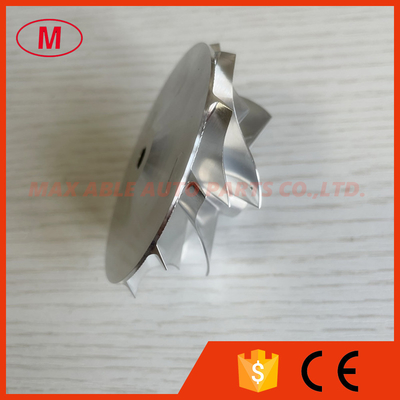

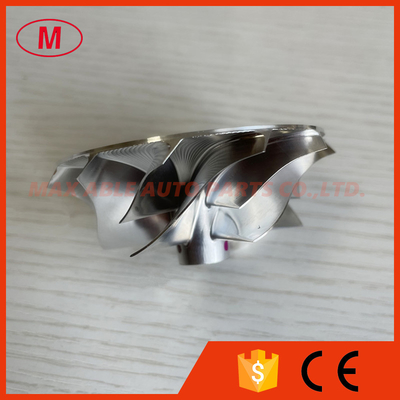

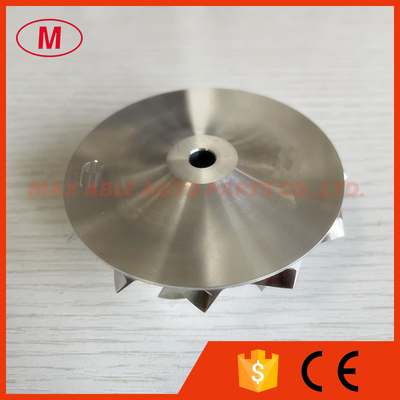

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: TD05H 20G reverse

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: NEUTRAL PACKING
    Delivery Time: 3-7 DAYS
    Payment Terms: Western Union, MoneyGram, T/T,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H 20G reverse

    2.TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Turbo Billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:13.50mm

    Inducer:52.56mm

    Exducer:68.01mm

    Tapered tip exducer:73.05mm

    Tip height:5.37mm

    Superback:2.90mm

    Overall height:31.50mm

    bore size :6.50mm

    bore type:through

    Trailing Angle:50 degree

    Cutback:0.0mm

    Blade height :22.94mm

    Splitter height:15.65mm

    SP height angle:-4.00

    6+6 BLADES.

    Tapered tip angle: 30 degree

    FIT FOR OE compressor housing

    Reverse rotation

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
