| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|

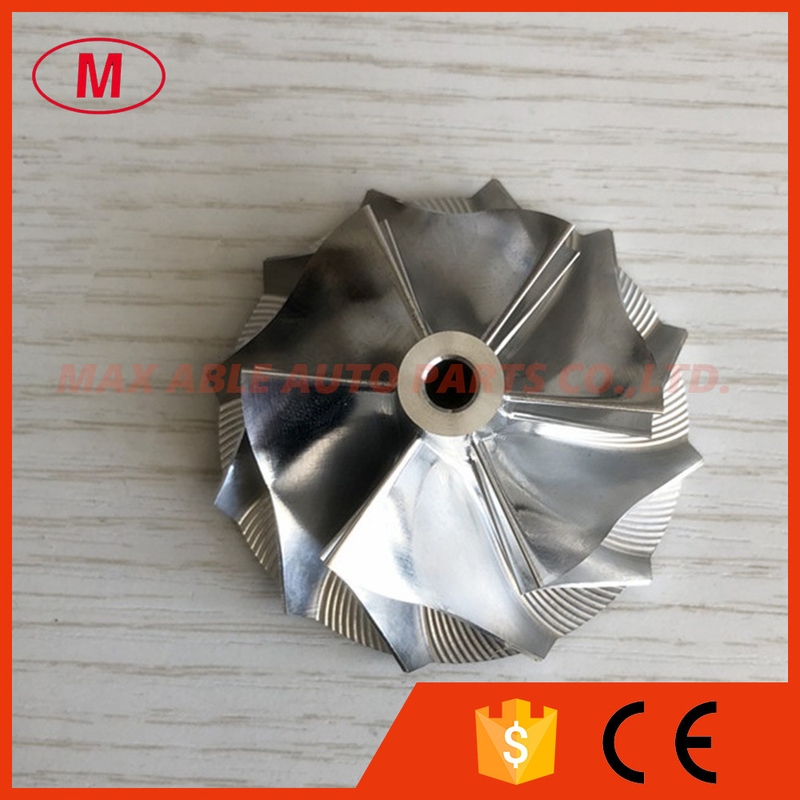

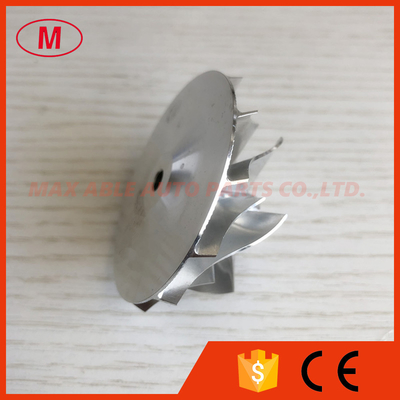

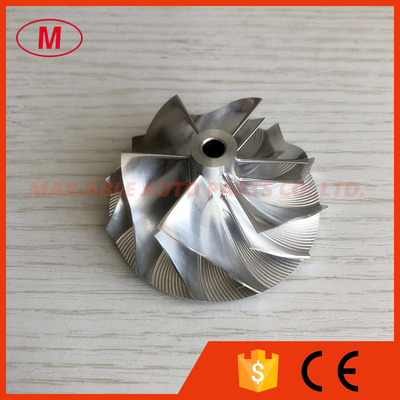

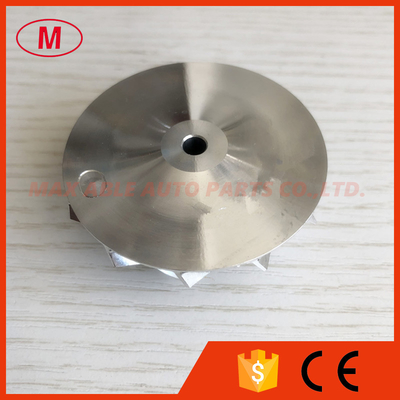

2.TD04HL 16T 6+6 blades 49189-00016 turbo Billet/milling/aluminum 2618 compressor wheel for 49189-01330/1350/1450/49377-00221
3.Size:
Nose diameter:10.75mm
inducer:43.43mm
Exduder:56.02mm
Tapered tip exducer:58.48mm
Tip height:4.79mm
Superback:1.83mm
bore size :5.00mm
bore type:through
Overall height:25.80mm
Trailing angle:60
Cutback:0.0
SP height angle:-4.50
Splitter height:14.00mm
Blade height:20.17mm
6+6 blades
Forward rotation
Tapered tip angle:18 degree
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
