| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 36.30/49.00mm | Type: | Turbochargers |
|---|
1. MODEL:GT15-25 forward

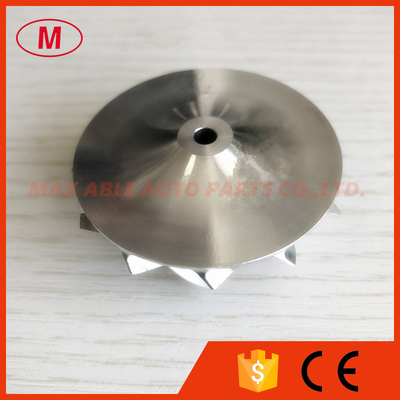

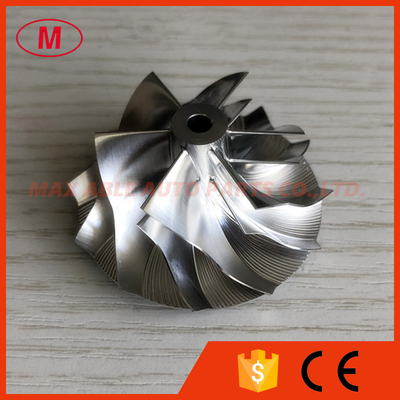

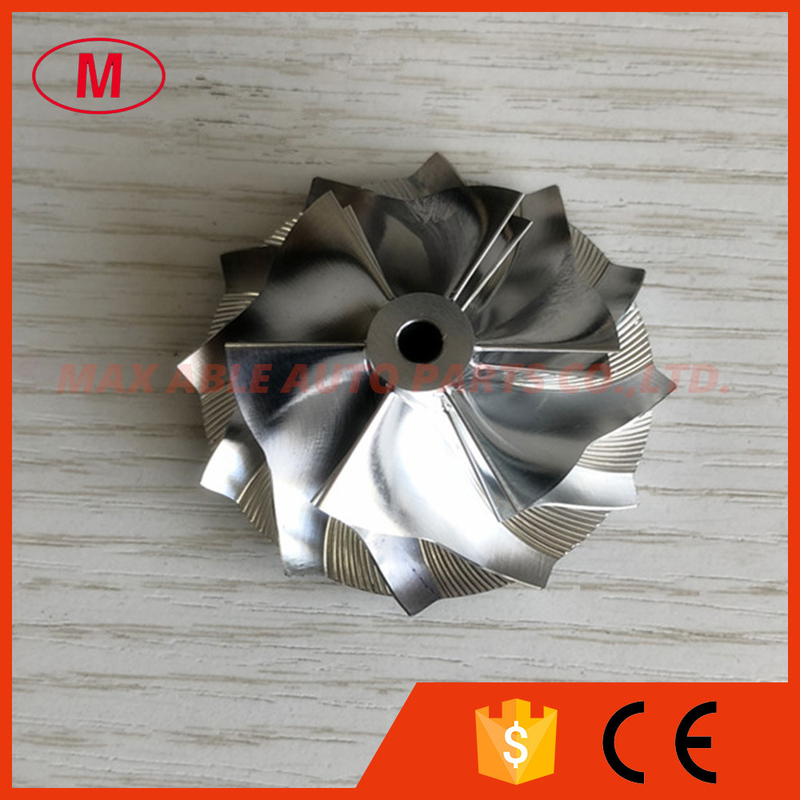

2.GT15-25 36.30/49.00mm 735492-0002J 11+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 757042-0011/0013/0014
3.Size:
Nose diameter:9.70mm
inducer:36.30mm
Exduder:49.00mm
Tapered tip exducer:52.21mm
Tip height:3.78mm
Superback:3.90mm
Overall height:26.40mm
bore size :5.08mm
Trailing Angle:60 degree
Cutback:4.5
SP height angle:0.00
Blade height:20.69mm
Splitter height:0.00
11+0 blades
Forward rotation
Fit for OE compressor housing
Tapered tip Angle:30 degree
Application:
757042-0011
757042-0013
757042-0014
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
