| Brand Name: | NO |
| Model Number: | T25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 46.52/60.13mm | Type: | Turbochargers |
|---|

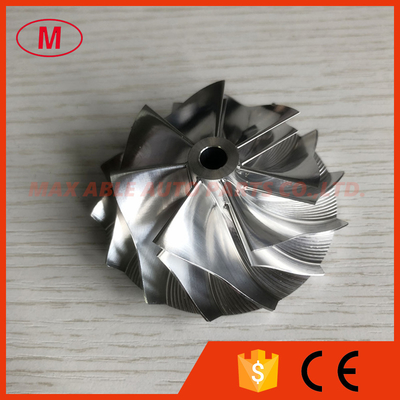

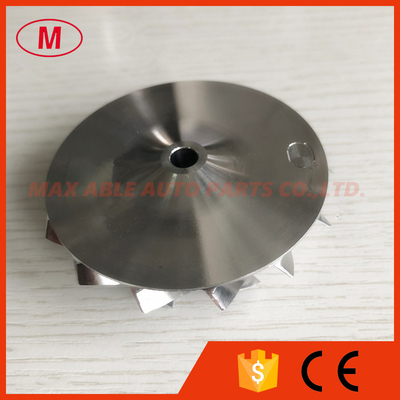

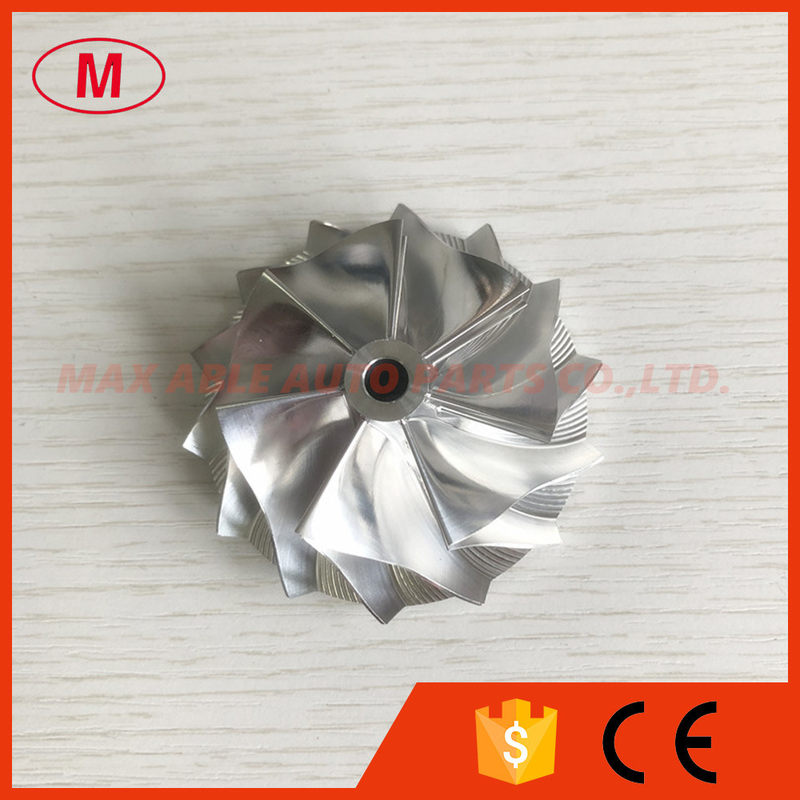

1.Model:T25 forward
2.T25 7+7 blades 46.52/60.13mm 445436-0001 high performance billet/milling/aluminum 2618 compressor wheel for ISUZU 465949-0001/465997-0001/466261-0001/466543-0001/468397-0003/471024-0003/471104-0001/472547-0001/700716-0004
3.SIZE:
Nose diameter:11.36mm
inducer:46.52mm
Exducer:60.13mm
Tapered tip exducer:65.00mm
Tip height:5.22mm
Superback:2.30mm
Overall height:24.50mm
bore size :5.99mm
bore type:through
Trailing angle :60 degree
Cutback:0.00mm
SP height angle:-6.00
Splitter height:13.75mm
Blade height:21.21mm
7+7 blades
Forward rotation
Tapered tip angle: 30 degree
It is custom size ,but It is for OE compressor housing
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
We can produce as your requirement.
