| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1.Model: K04 forward

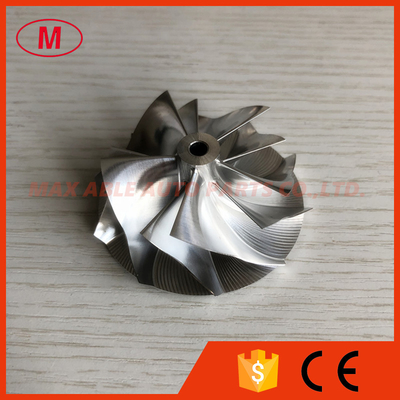

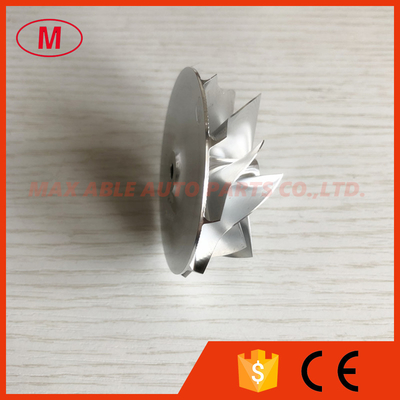

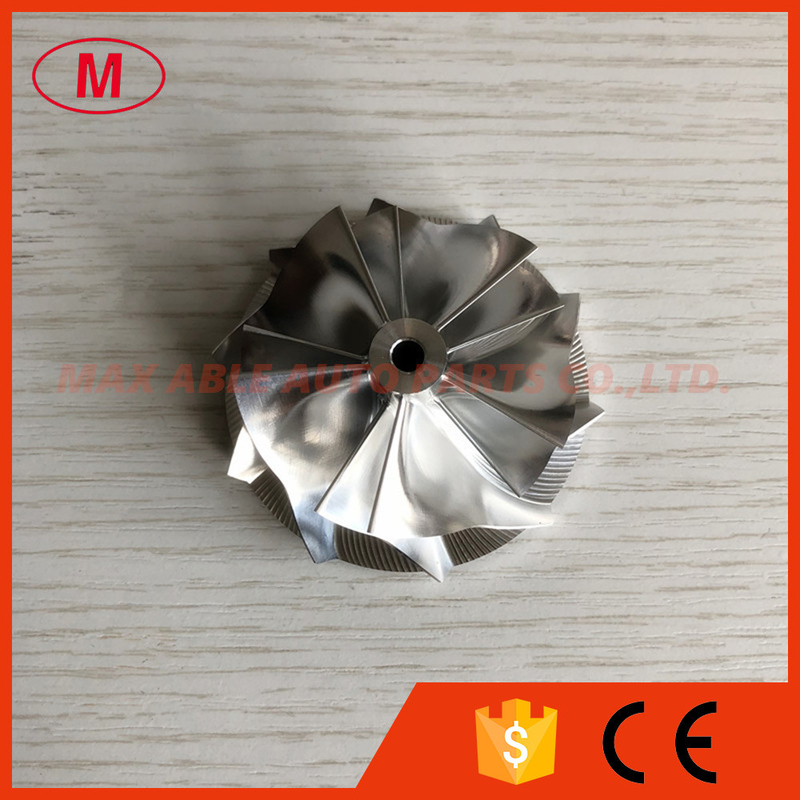

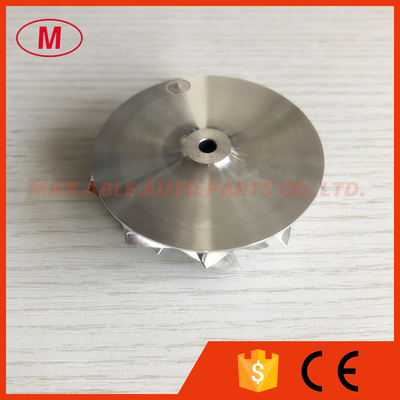

2.K04 50.39/60.00mm 5+5 blades turbo aluminum 2618/milling/billet compressor wheel
3.SIZE:
Nose Diameter:10.99mm
inducer:50.39mm
Exducer:60.00mm
Tapered tip exducer:64.12mm
Tip height:4.57mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
Blade height:21.99mm
Splitter height:17.00mm
SP height angle:-4.00
5+5 blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:30 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
|
|
