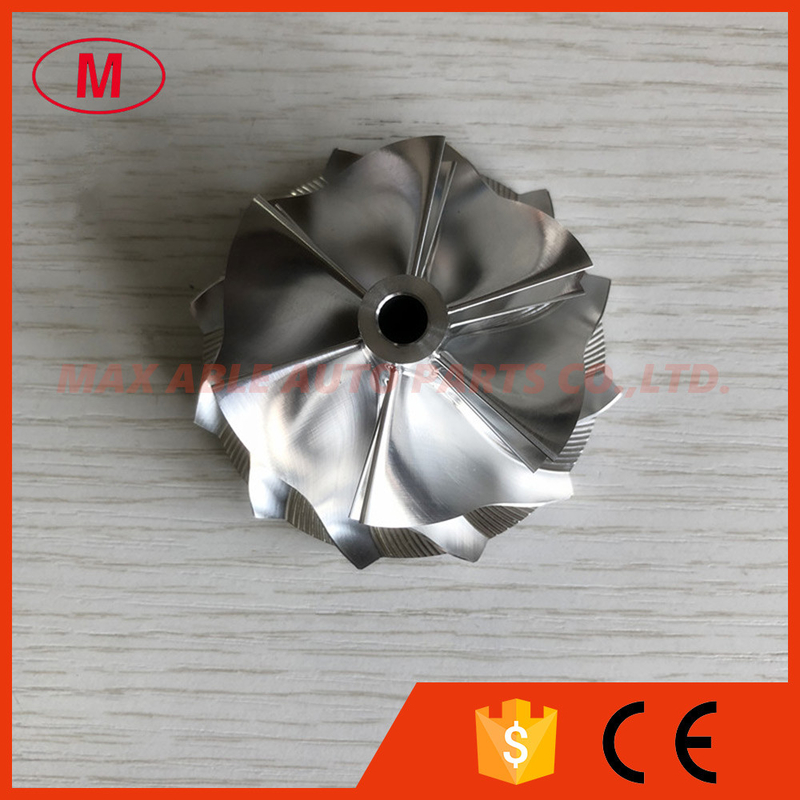

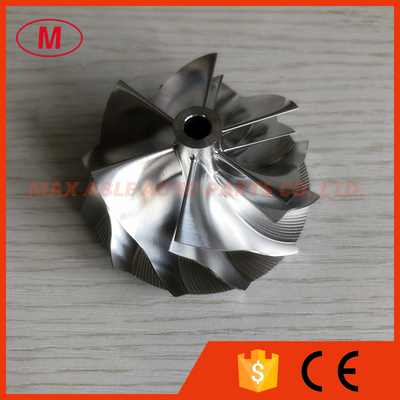

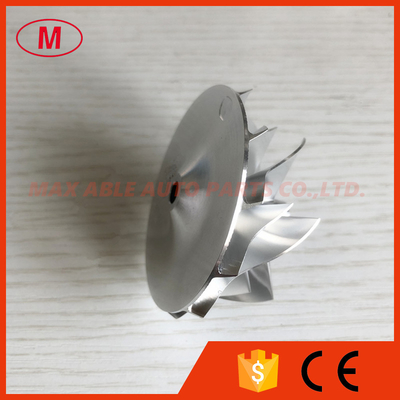

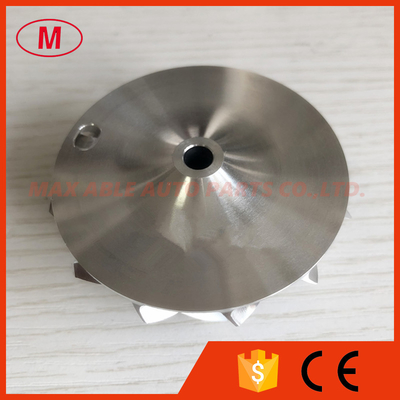

RHF5HB 6+6 blades 51.00/61.98mm Turbocharger milling/aluminum 2618/billet compressor wheel for SUBARU VF30/VF34 upgrade

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1.Model: RHF5HB forward

2.RHF5HB 6+6 blades 51.00/61.98mm Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF30/VF34 upgrade

3.Size:

Nose diameter:11.21mm

Inducer:51.00mm

exducer:61.98mm

Tapered tip exudcer:65.90mm

Tip height:4.95mm

Superback:3.71mm

bore size :6.10mm

Overall height:34.00mm

Cutback:0.0mm

Trailing Angle:60 degree

Blade height:25.72mm

Sp height angle:-2.20

Splitter height:17.20mm

6+6 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:27 degree

Application:

VF30 upgrade

VF34 upgrade

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 6+6 blades 51.00/61.98mm Turbocharger milling/aluminum 2618/billet compressor wheel for SUBARU VF30/VF34 upgrade
