| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K04 forward

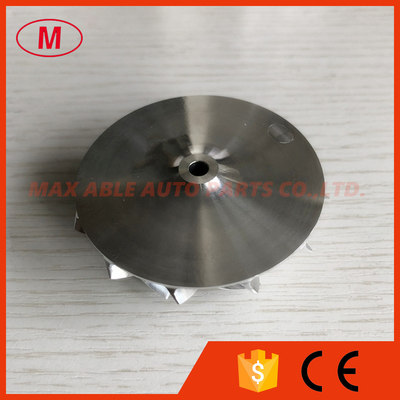

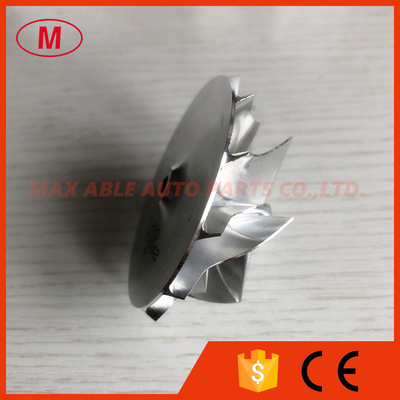

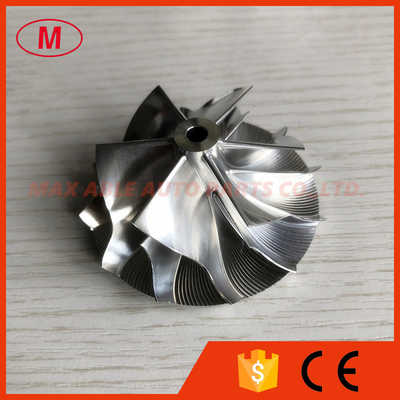

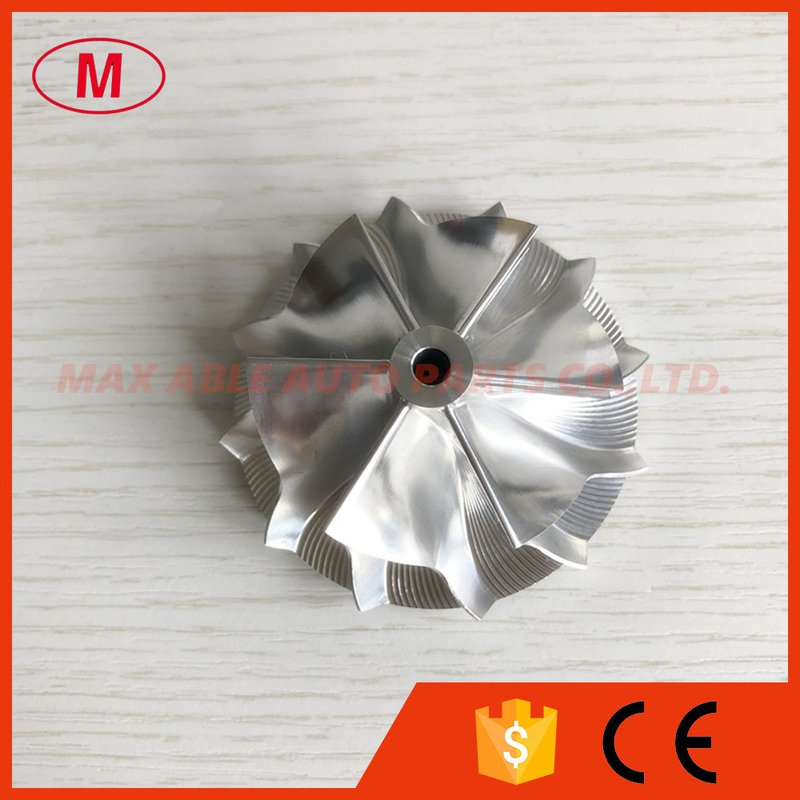

2.K04 47.15/58.65mm 6+6 blades High performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.25mm
Inducer:47.15mm
Exducer:58.65mm
Tapered tip exducer:62.46mm
Tip height:4.30mm
Overall height:27.66mm
Superback:2.60mm
Bore size:4.61mm
Trailing angle:60 degree
Cutback:8.0
SP height angle:0.00
Splitter height:12.10
Blade height:23.30mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me
