| Brand Name: | NO |
| Model Number: | GT25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 46.52/60.13mm | Type: | Turbochargers |
|---|
1.Model:GT25 forward

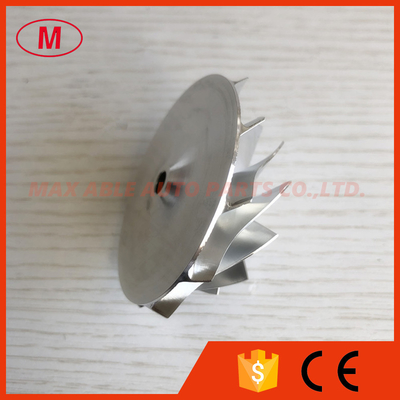

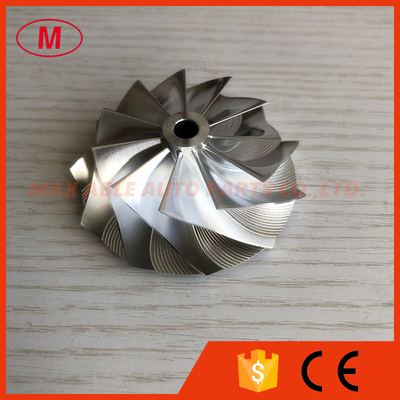

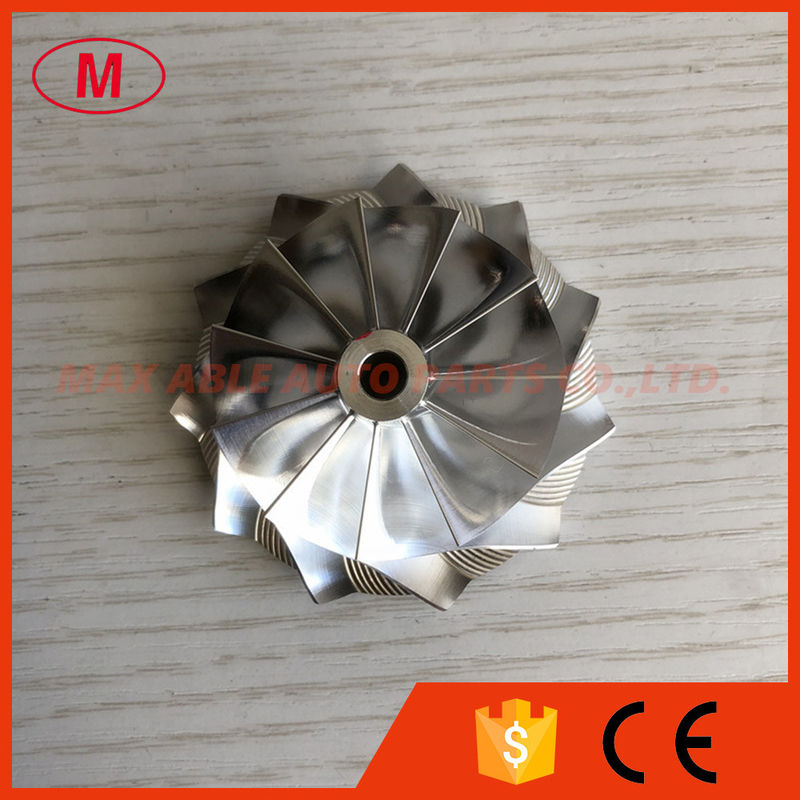

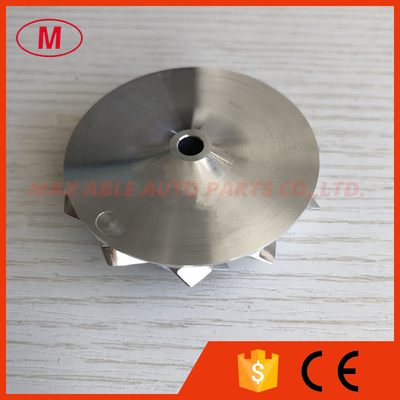

2.GT25 11+0 blades 46.52/60.13mm 445436-0001 high performance collar dia 10mm billet/milling/aluminum 2618 compressor wheel for ISUZU 465949-0001/465997-0001/466261-0001/466543-0001/468397-0003/471024-0003/471104-0001/472547-0001/700716-0003
3.SIZE
Nose diameter:11.63mm
inducer:46.52mm
Exducer:60.13mm
Tapered tip exducer:65.00mm
Overall height:24.50mm
Tip height:5.22mm
Superback:2.30mm
Cutback:0.00mm
bore size :5.99mm
bore type:through
Trailing angle :60 degree
SP height angle:0.00
Splitter height:0.00mm
Blade height:20.10mm
11+0 blades
FORWARD ROTATION
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
