| Brand Name: | NO |
| Model Number: | HX40 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 62.45/85.98mm | Type: | Turbochargers |
|---|
1. MODEL:HX40 FORWARD

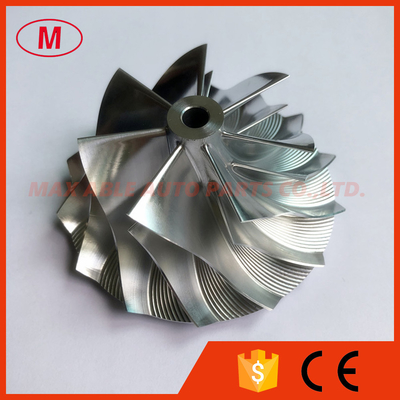

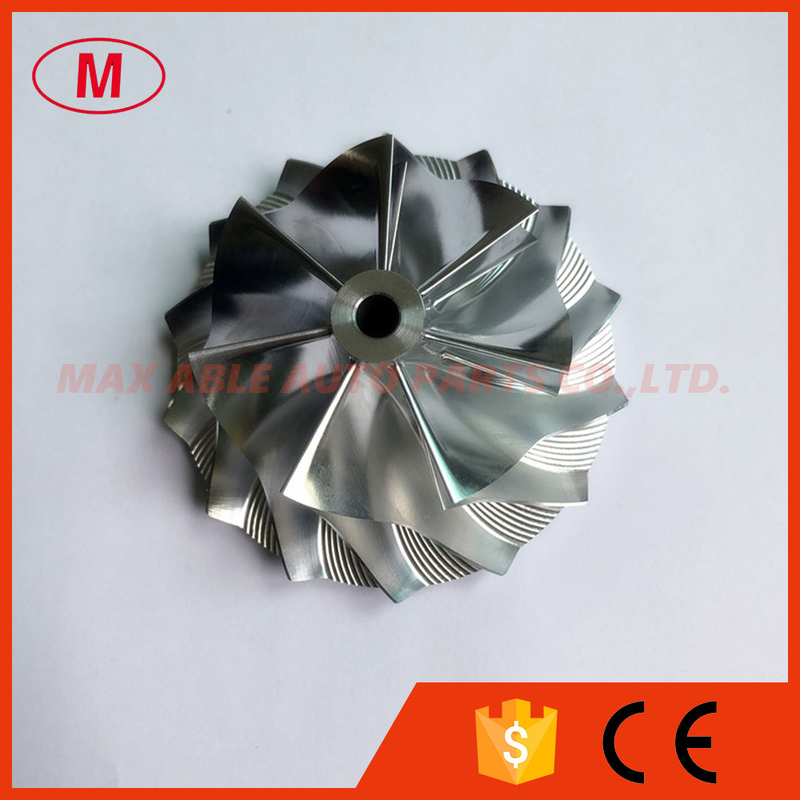

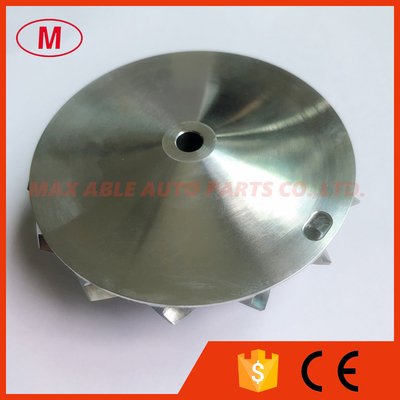

2.HX40 62.45/85.98mm 7+7 blades turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:15.00mm
inducer:62.45mm
Exduder:85.98mm
Tapered tip exducer:91.10mm
Tip height:5.43mm
Superback:4.96mm
Overall height:42.61mm
bore size :7.00mm
Trailing angle:45
Cutback:0.0
SP height angle:-9.00
Splitter height:24.00
Blade height:34.52mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
