| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 49.33/65.00mm | Type: | Turbochargers |
|---|
1.Model:TD05H reverse

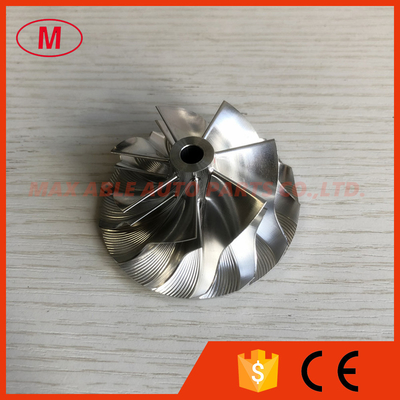

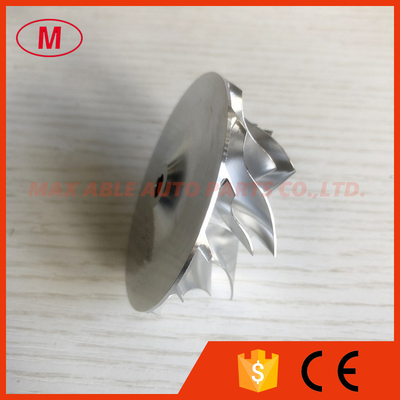

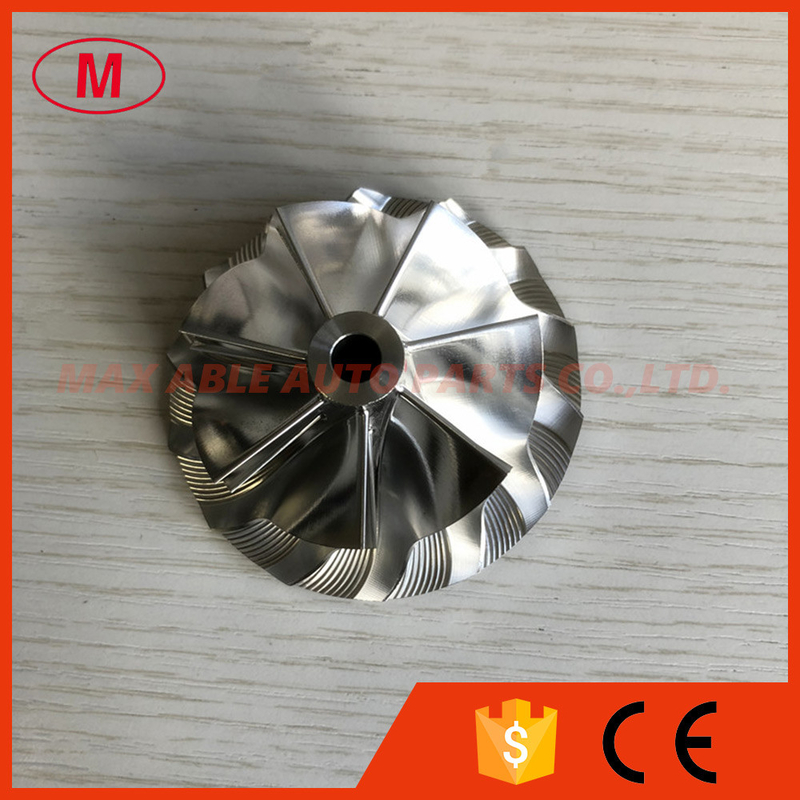

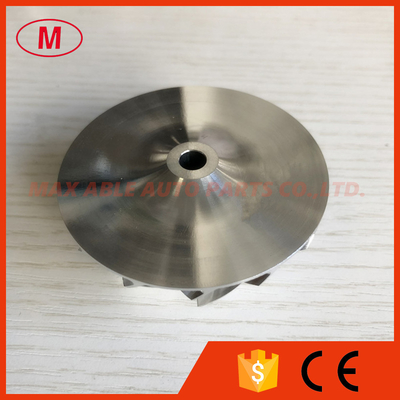

2.TD05H reverse 7+7 blades 49.33/65.00mm Turbo billet/milling/aluminum 2618 compressor wheel
3.SIZE:
Nose diameter:12.70mm
inducer:49.33mm
Exducer:65.00mm
Tip height:5.01mm
Superback:2.90mm
Overall height:30.00mm
bore size :6.50mm
Trailing angle :45
Cutback:0.00
SP height angle:-9.00
Splitter height:18.20mm
Blade height:23.90mm
7+7 blades
reverse rotation
Tapered tip Angle:0 degree
It is custom size ,please check carefully before buying
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
We can produce as your requirement.
