| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 54.06/71.40mm | Type: | Turbochargers |
|---|

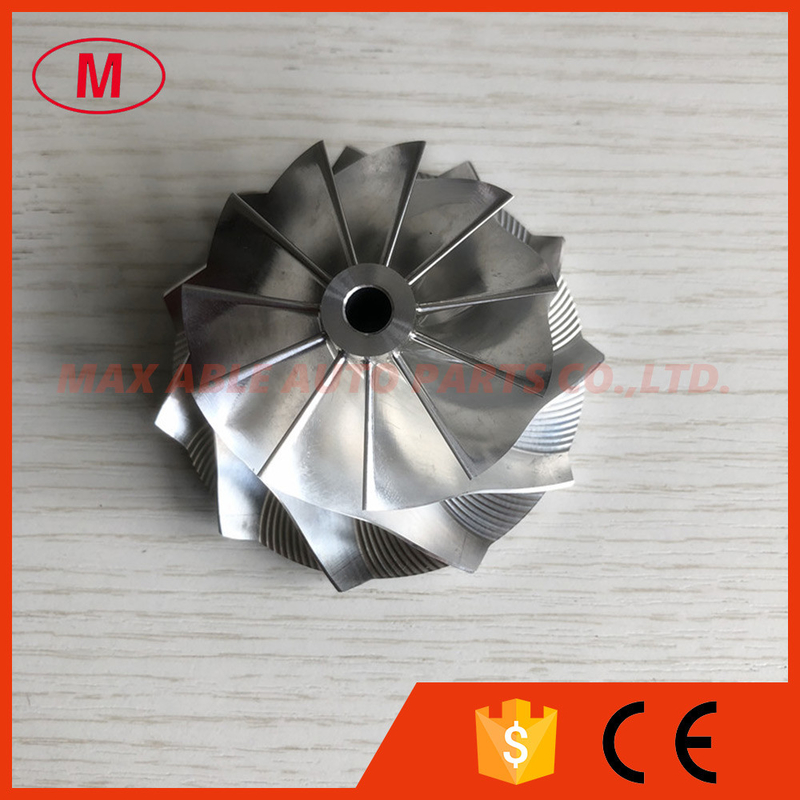

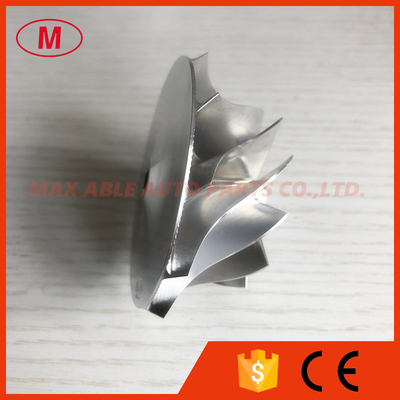

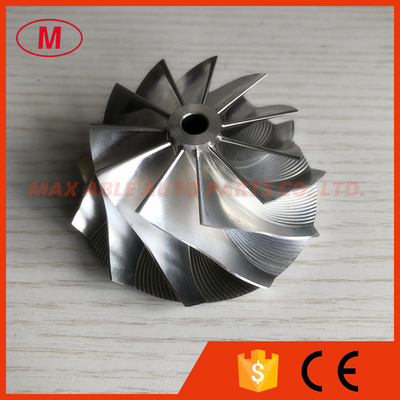

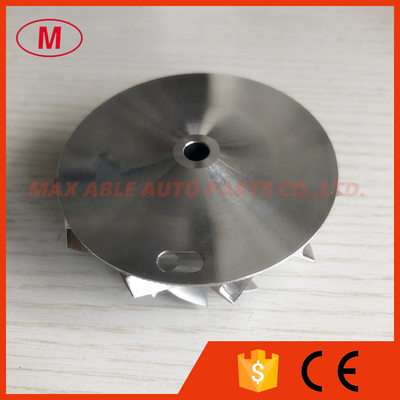

1.Model:TD05H Forward
3.Size:
Nose diamter:13.33mm
inducer:54.06mm
Exduder:71.40mm
Tapered tip exducer:76.51mm
Tip height:5.43mm
Superback:2.90mm
Overall height:35.14mm
bore size :6.50mm
bore type:through
Trailing angle:45
Cutback:0.00
SP height angle:0.00
Blade height:29.94mm
Splitter height:0.00
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is for Custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
