| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 43.40/56.03mm | Type: | Turbochargers |
|---|

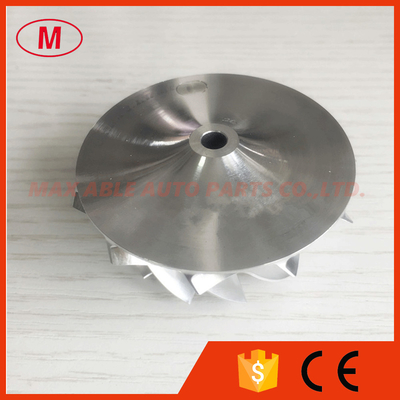

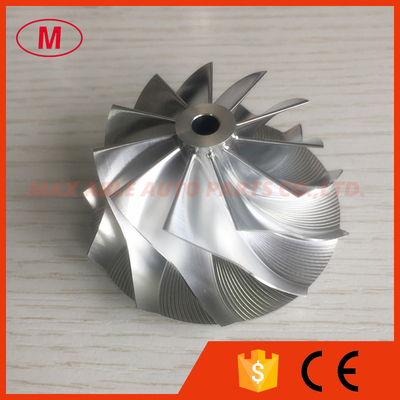

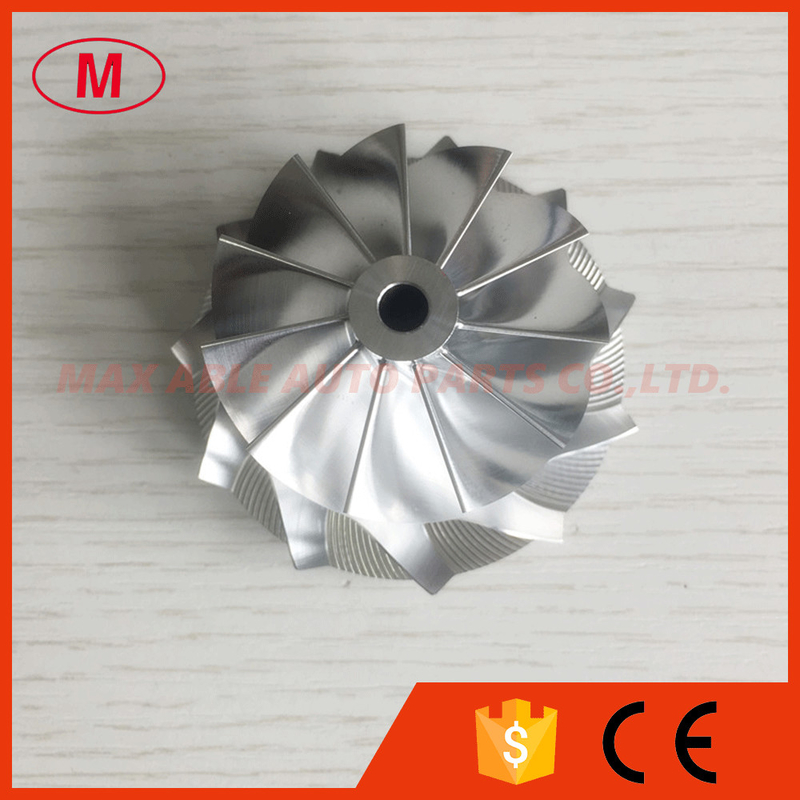

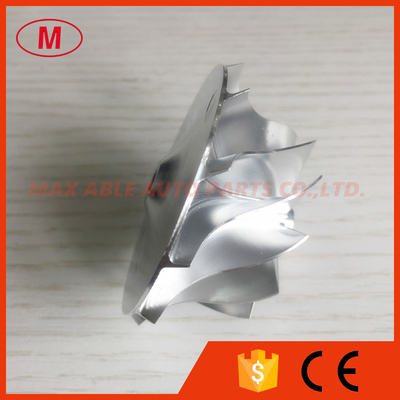

1.Model:GT15-25 forward
3.Size:
Nose diamter:11.35mm
inducer:43.40mm
Exduder:56.03mm
Tapered tip exducer:59.97mm
Tip height:4.41mm
Superback:3.68mm
Overall height:30.90mm
bore size :5.08mm
bore type:through
Trailing Angle:55 degree
Cutback:4.00mm
SP height angle:0.00
Splitter height:0.00mm
Blade height:25.17mm
Tapered tip angle:30 degree
It is fit for OE compressor housing
11+0 blades
forward rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
