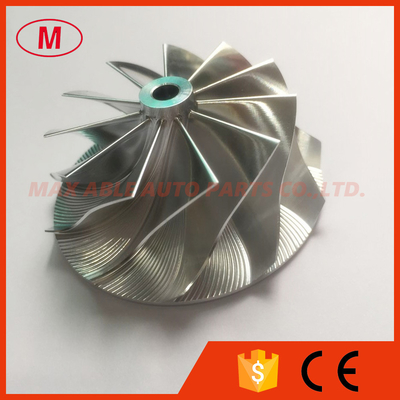

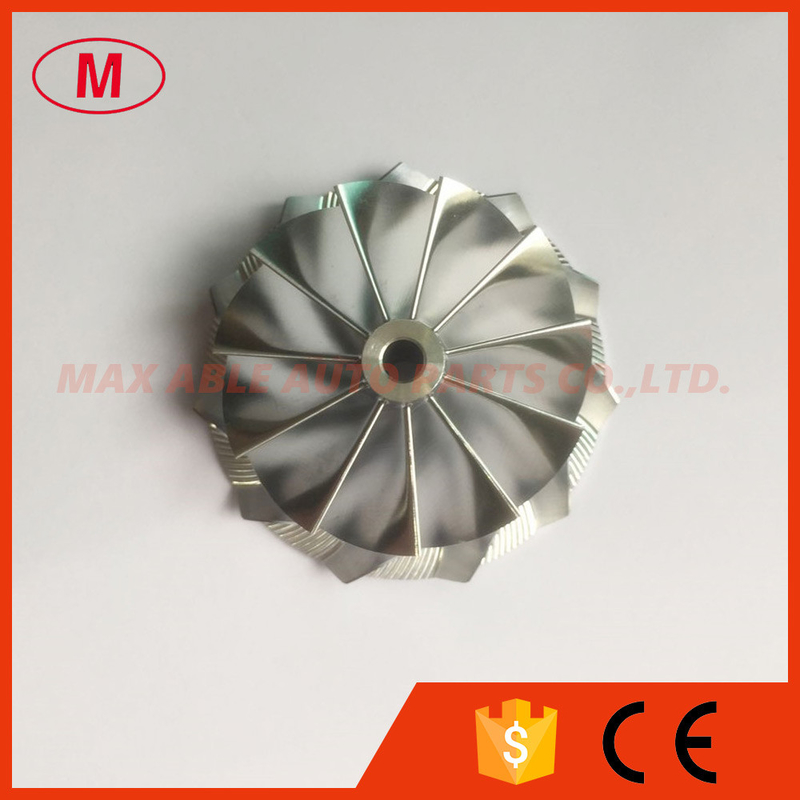

TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 20T reverse
    2.TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose Diameter:10.02mm
    Inducer:47.04mm
    exducer:58.00mm
    Tapered tip exducer:60.37mm
    Tip height:4.65mm
    Superback:1.90mm
    bore size :5.00mm
    bore type:through
    Overall height:26.13mm
    Trailing angle:45 degree
    Cutback:0.0
    Blade height:21.53mm
    SP height angle:0.00
    Splitter height:0.00mm
    11+0 blades reverse
    Tapered tip angle:18 degree
    It is custom size,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
    skype: maxabledieselparts
    wchat/whatsapp:+86-18018657719
    TD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 20T reverse 49189-x 11+0 blades 47.04/58.00mm Turbocharger milling/aluminum 2618/billet compressor wheel
