| Brand Name: | NO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K04 forward

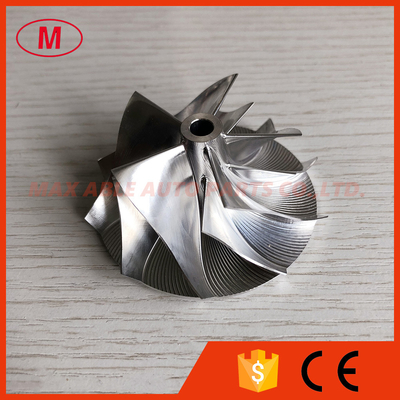

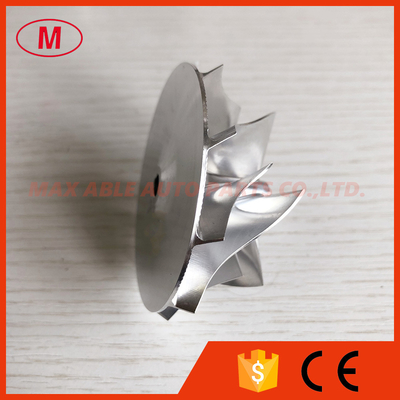

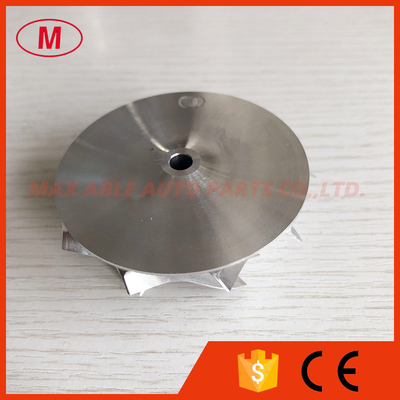

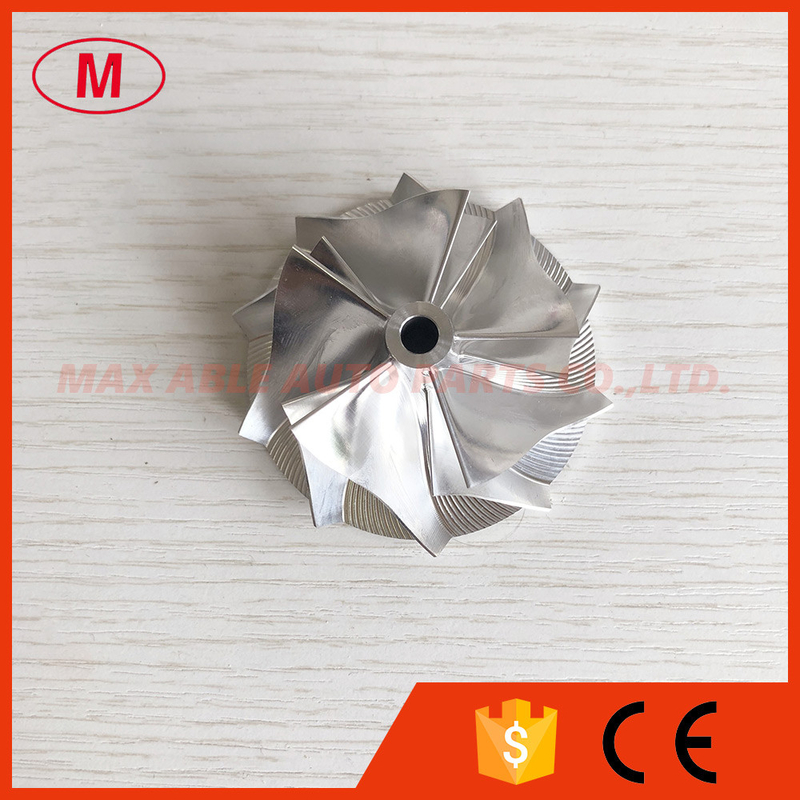

2. K04 46.00/60.00mm 5+5 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.89mm
Inducer:46.00mm
Exducer:60.00mm
Tapered tip Exducer:65.29mm
Tip height:5.58mm
Superback:1.53mm
Bore size :5.50mm
bore type:through
Overall height:28.90mm
Trailing Angle:60 degree
Cutback:-3.0
Blade height:26.14mm
SP height Angle:-8.00
Splitter height:18.40
Tapered tip Angle:30 degree
5+5 blades
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
All the billet compressor wheels have been balanced.
