| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K04 forward

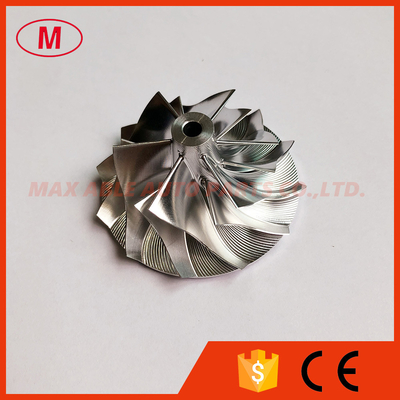

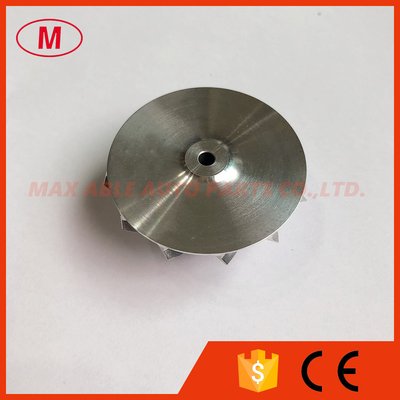

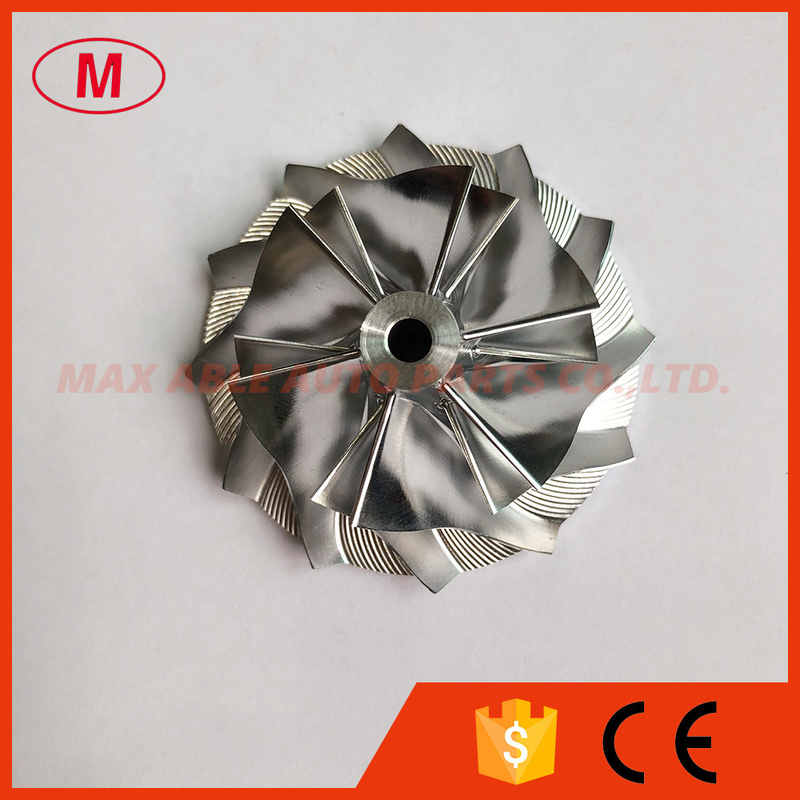

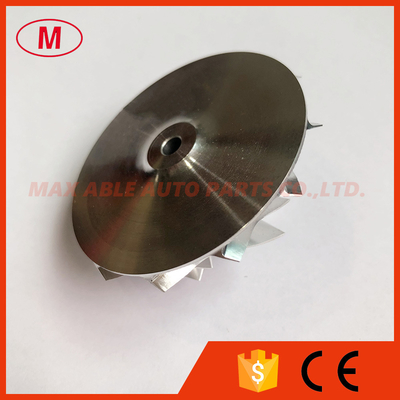

2.K04 K0422582 6+6 blades 41.72/56.08mm Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.55mm
Inducer:41.72mm
Exducer:56.08mm
Tapered tip exducer:59.43mm
Tip height:4.30mm
Overall height:27.63mm
Superback:1.80mm
Bore size:4.61mm
Trailing angle:50
Cutback:7.0
SP height angle:-6.40
Splitter height:14.85
Blade height:21.60mm
6+6 blades
forward rotation
Tapered tip angle:27 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me
