1. MODEL:K04 Forward

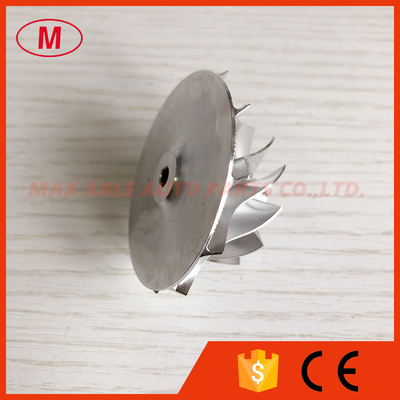

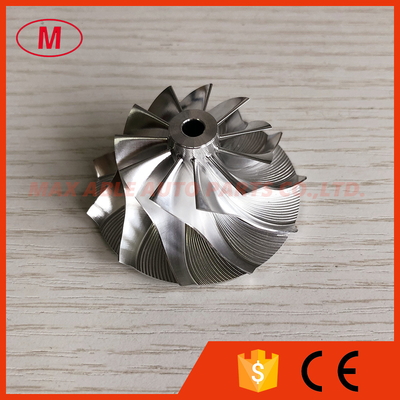

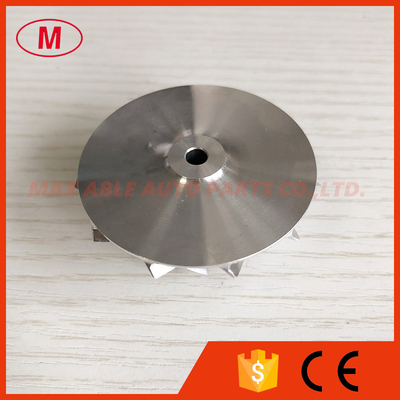

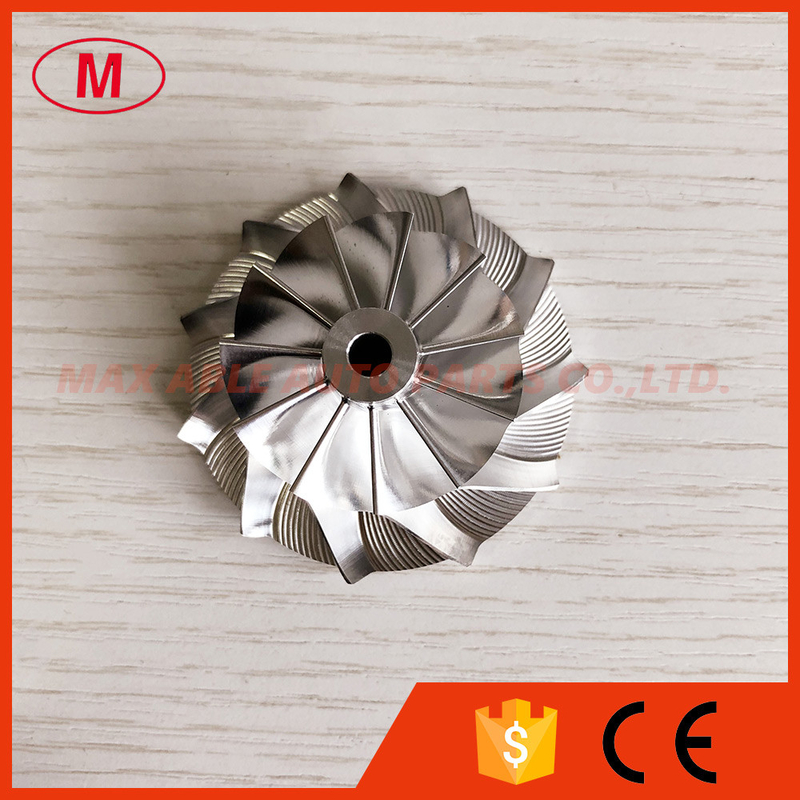

2.K04 34.53/50.96mm 11+0 blades 5304-123-2032 Turbo Billet/milling/aluminum 2618 compressor wheel for 5303-970-0048 53039700048
3.Size:
Nose diameter:11.50mm
Inducer:34.53mm
Exducer:50.96mm
Tapered tip exducer:54.07mm
Tip height:3.70mm
super back:1.80mm
overall height:25.67mm
bore size :4.61mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Sp height angle:0.00
Splitter height:0.00
Blade height:19.78mm
11+0 blades
Forward rotation
4.Application:
5303-970-0048
53039700048
Tapered tip angle:30 degree
It is for OE compressor housing
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheels have been balanced.
