1.Model:K04 forward

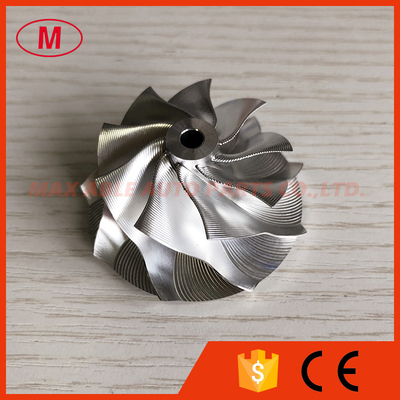

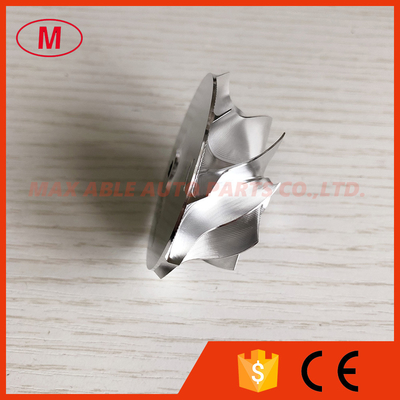

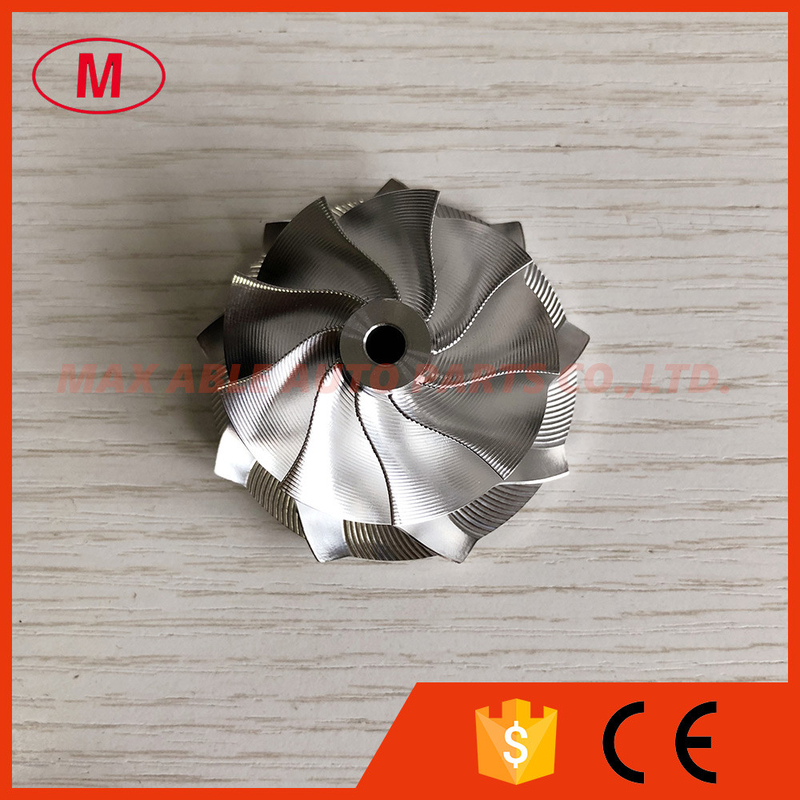

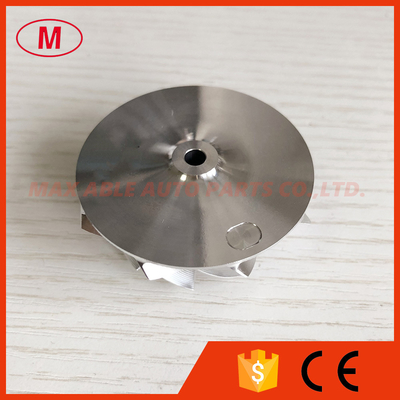

2.K04 41.00/50.96mm 5304-123-2036 9+0 blades Point Milling, Snake Curve,Performance Design, Twisted Blade Design turbo milling/aluminum 2618/billet compressor wheel for 5303-970-0086/0087/0105/0106
3.SIZE:
Nose Diameter:10.63mm
inducer:41.00mm
Exducer:50.96mm
Tapered tip exducer:54.53mm
Tip height:4.09mm
Superback:1.80mm
Overall height:25.75mm
bore size :4.61mm
Trailing angle:45 degree
Cutback:6.0
SP Height angle:6.00
Splitter height:13.00mm
Blade height:20.00mm
9+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Application:
5303-970-0086
5303-970-0087
5303-970-0105
5303-970-0106
7.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheels have been balanced.
