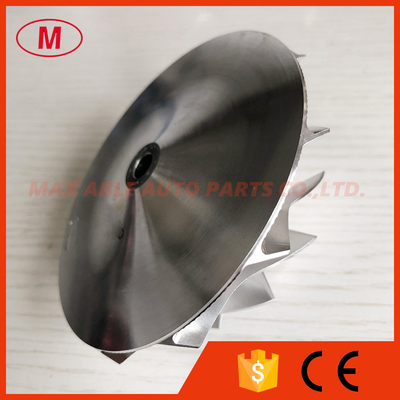

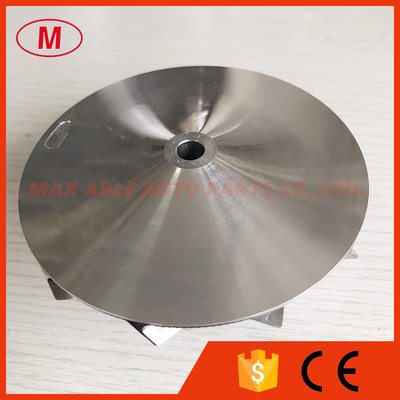

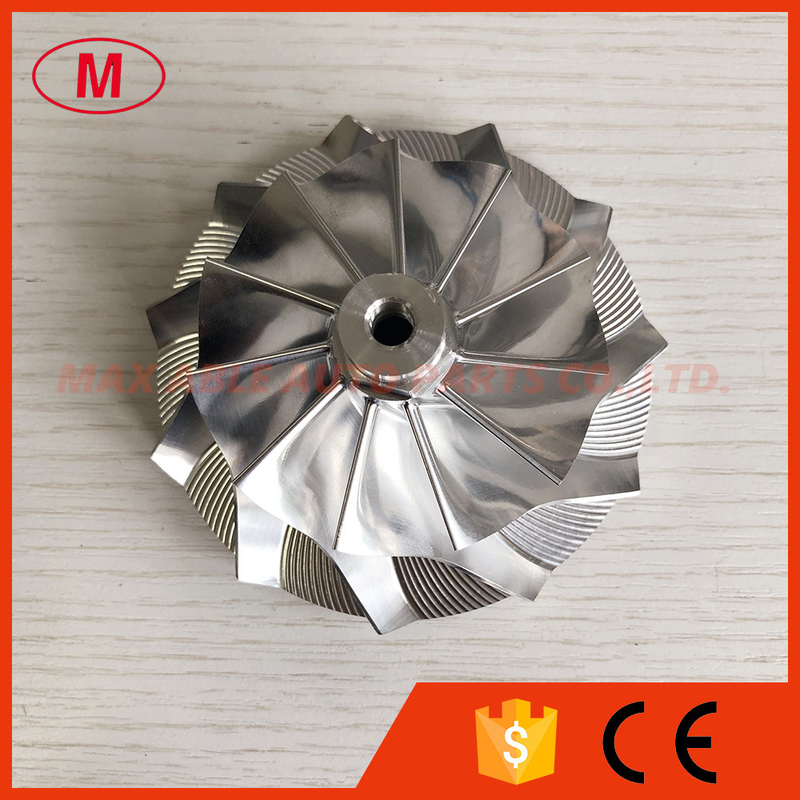

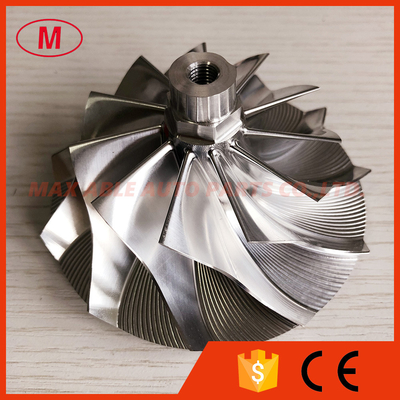

GT3794 11+0 blades 67.77/94.00mm Turbo milling/aluminum 2618/billet compressor wheel for CHEVY 6.6L

Contact Now

Detailed Product Description

1. MODEL:GT3794 forward

2.GT3794 67.77/94.00mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel for CHEVY 6.6L PowerMax turbo

Stage 1: 773540-5001s AVNT™

Stage 2: 773542-5001s AVNT™

3.Size:

Nose diameter:19.40mm

Inducer:67.77mm

exducer:94.00mm

Tapered tip exducer:97.91mm

Tip height:7.06mm

Superback:5.55mm

bore size :7.48mm

Overall height:53.50mm

Cutback:6.1

Trailing Angle:45

Sp height angle:0.00

Splitter height:0.00mm

Blade height:32.43mm

Bore type:Threaded-M7x1.0LHT

11+0 blades forward

Fit for OE compressor housing

Tapered tip Angle:18 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

skype : maxabledieselparts

wechat/whatsapp:+86-18018657719
