Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 forward

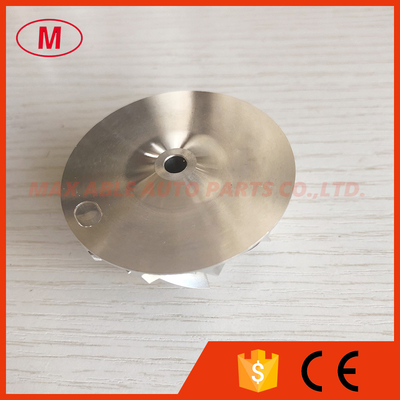

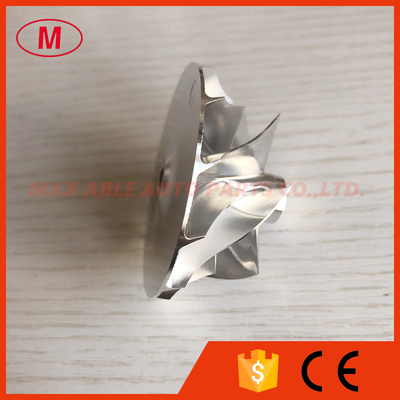

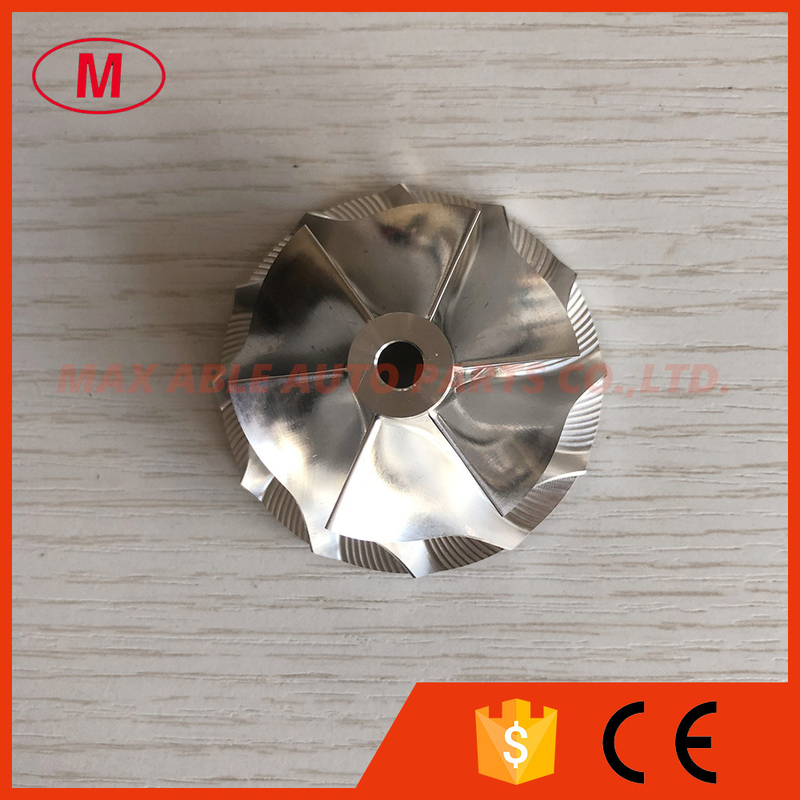

2.RHF5 40.65/52.50mm 6+6 blades turbo turbocharger aluminum 2618/Billet/milling compressor wheel.
3.Size:
Nose diameter:11.90mm
Inducer:40.65mm
exducer:52.50mm
Tip height :4.61mm
superback:1.53mm
Overall height:28.30mm
Bore size:5.10mm
bore type:through
Trailing angle:60
SP height angle:0.00
Blade height:21.65mm
Splitter height:12.07mm
Cutback:3.5
6+6 blades
Forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
