| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 50.20/65.00mm | Type: | Turbochargers |
|---|

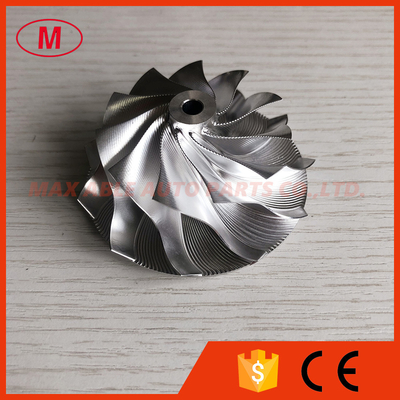

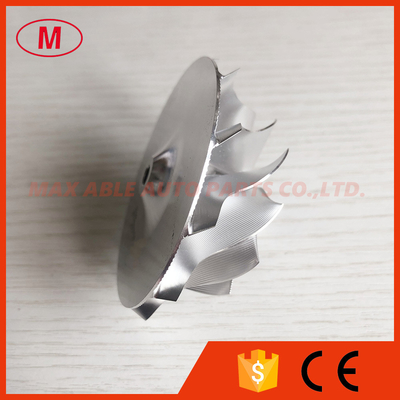

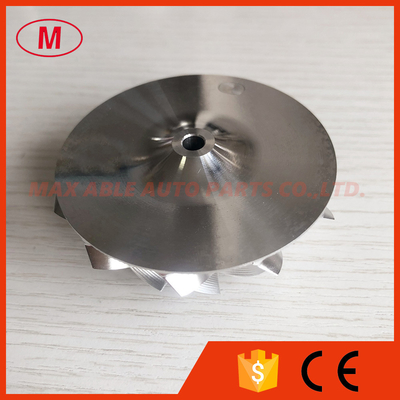

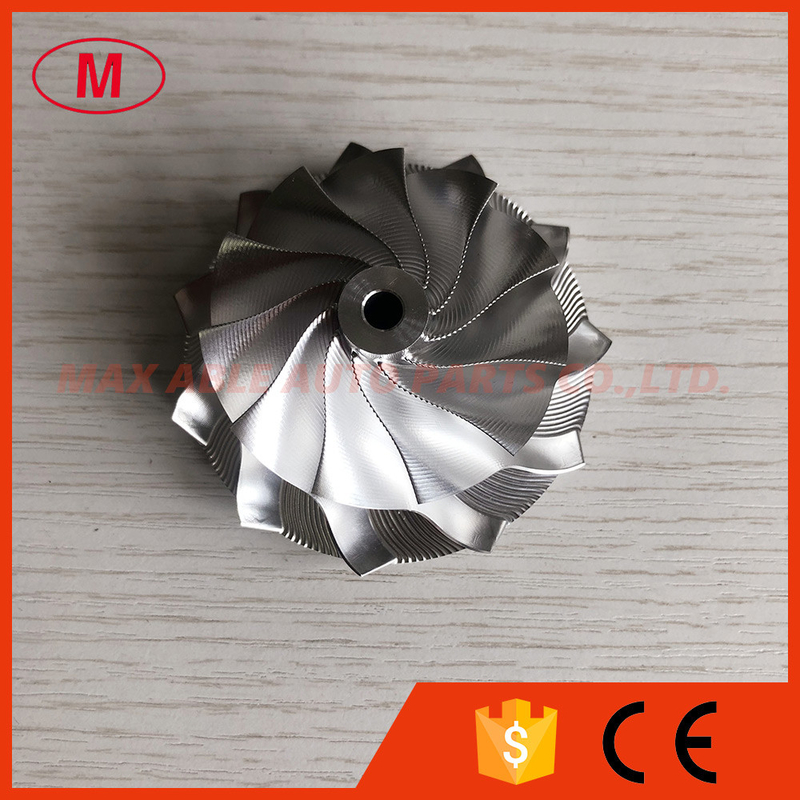

1.Model:GT15-25 FORWARD
2. GT15-25 50.20/65.00mm 11+0 Blades 702549-0008HF V1 Point Milling_Snake Curve,Twisted Blade design, Performance Design turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:11.98mm
Inducer:50.20mm
Exducer:65.00mm
Tapered tip exducer:69.83mm
Tip height:5.19mm
Superback:3.68mm
Overall height:32.28mm
Bore:5.08mm
bore type:through
Trailing angle:45 degree
Cutback:6.0mm
Sp height angle:0.00
Blades height:22.50mm
Splitter height:0.00mm
11+0 blades
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
702549-0008HF
All the compressor wheels have been balanced.
