| Brand Name: | NO |
| Model Number: | GTX3071 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

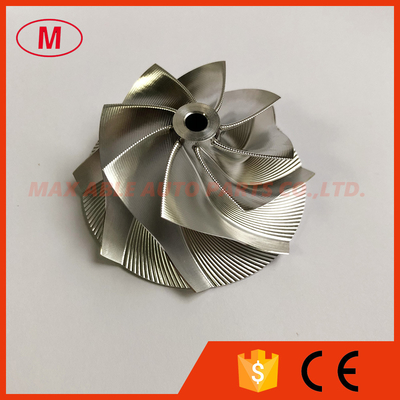

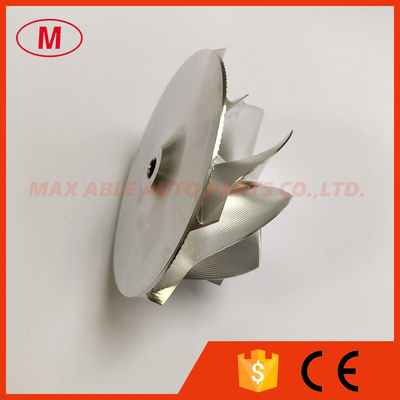

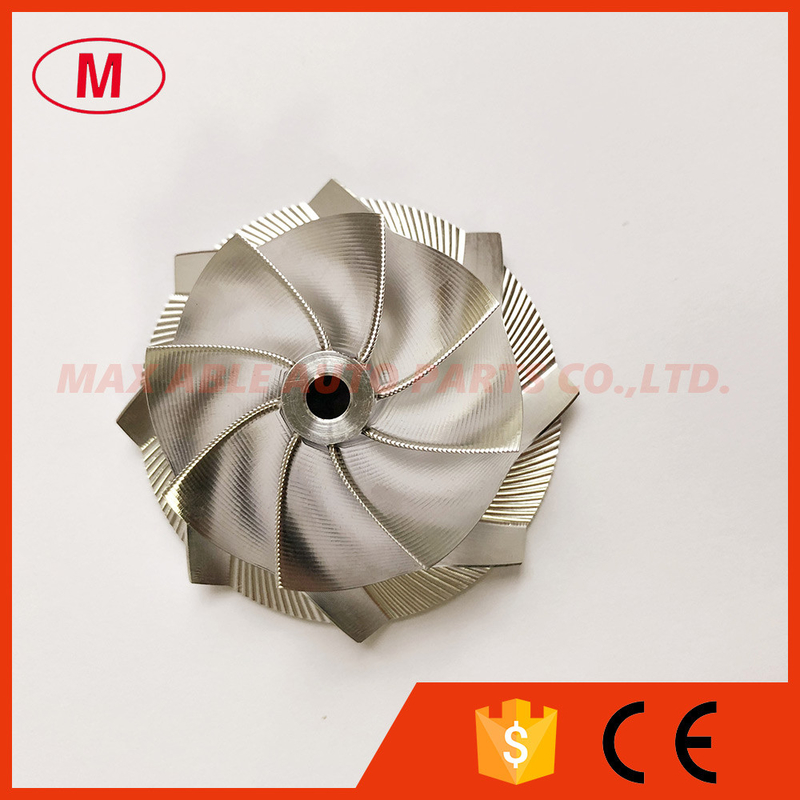

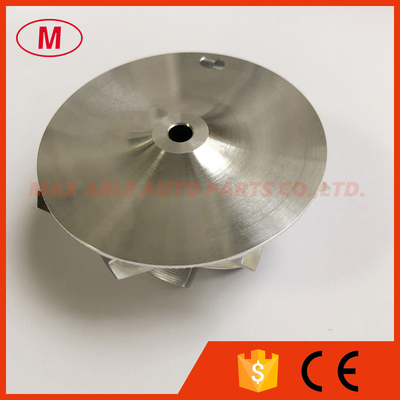

1.Model:GTX3071 GEN ll forward
3.Size:
Nose diamter:12.70mm
inducer:54.06mm
Exduder:71.40mm
Tapered tip exducer:76.39mm
Tip height:5.52mm
Superback:2.36mm
Overall height:34.60mm
bore size :6.00mm
bore type:through
Traling angle:45 degree
Cutback:6.6
SP height angle:0.00
Splitter height:0.00
Blade height:30.00mm
Splitter height:0.00
8+0blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
