| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

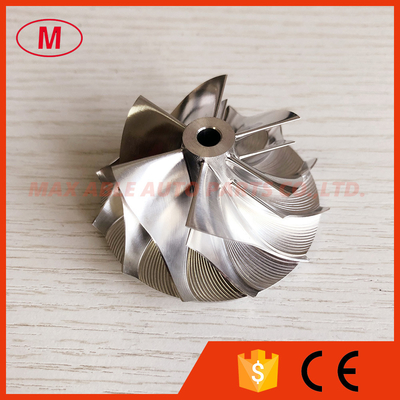

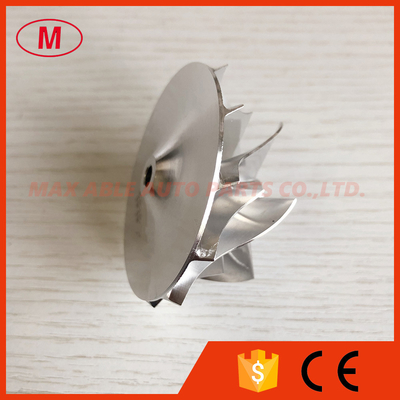

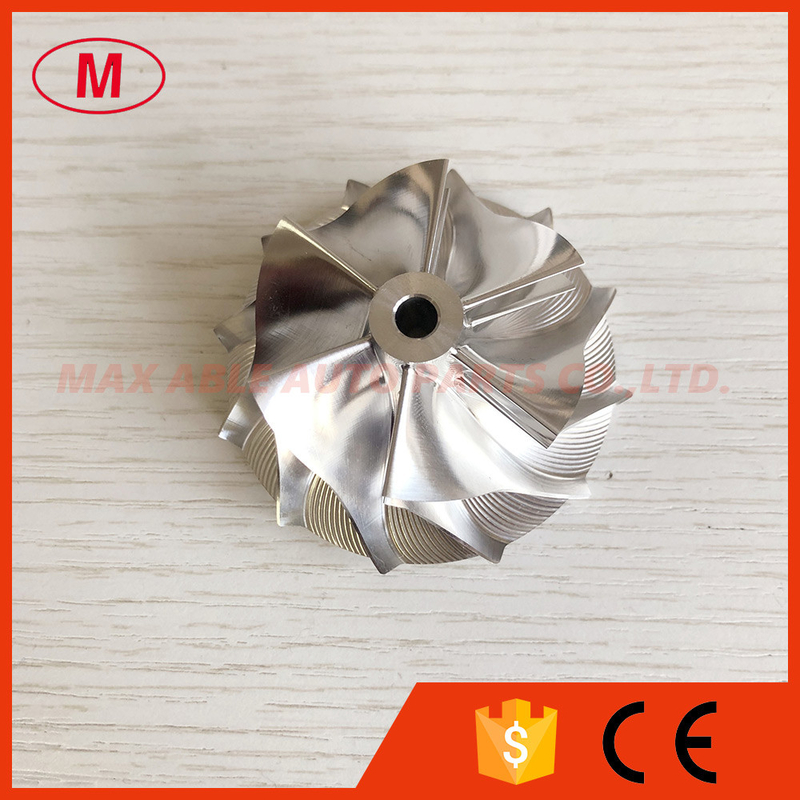

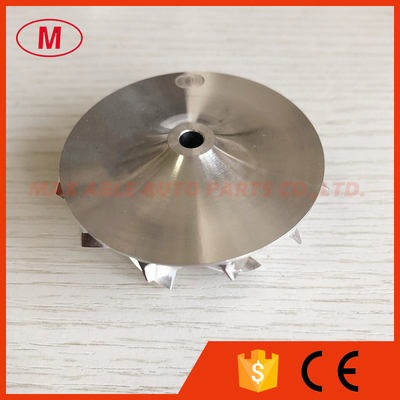

.1.Model:GT15-25 forward
3.Size:
Nose diamter:11.49mm
inducer:43.36mm
Exduder:56.03mm
Tapered tip exducer:59.95mm
Tip height:4.40mm
Superback:3.68mm
Overall height:28.50mm
bore size :5.08mm
bore type:through
Trailing angle:75 degree
Cutback:0.0
Blade height:22.94mm
Splitter height:14.90mm
SP Height angle:0.00
It is custom size ,it is fit for OE compressor housing
6+6 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
6.Application:
765155-0007
All the billet compressor wheels have been balanced.
The more models we also have.
