| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H Reverse

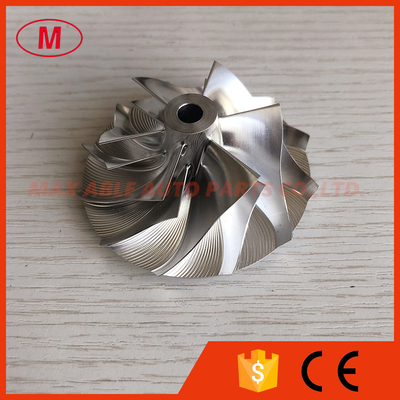

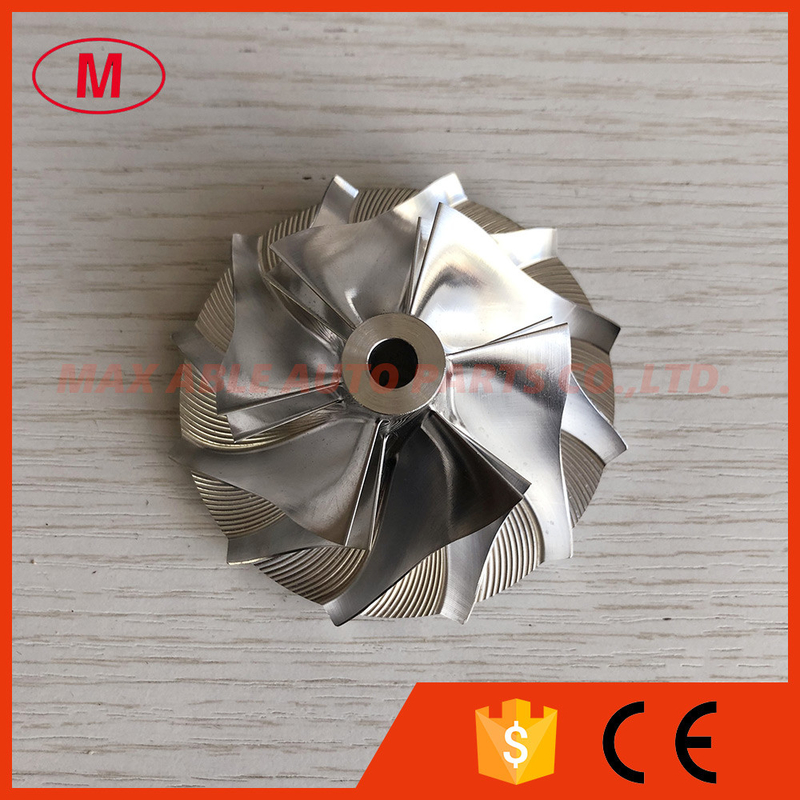

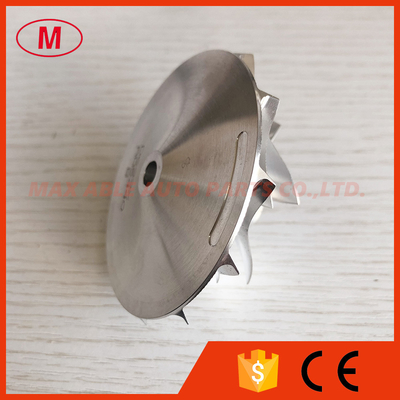

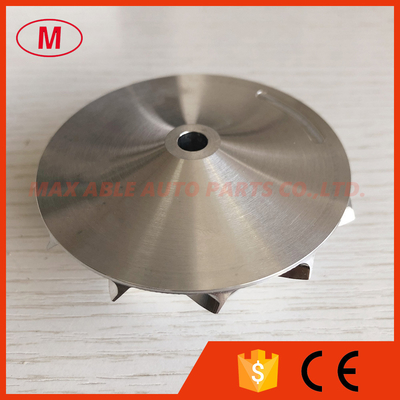

2.TD05H reverse 48.30/68.00mm 49179-44300 6+6 blades high performance Billet/milling/Aluminum 2618 compressor wheel for Forklift
3.Size:
Nose diameter:13.74mm
inducer:48.30mm
Inducer:68.00mm
Tapered tip exducer:72.16mm
Tip height:4.60mm
Superback:4.80mm
Overall height:31.50mm
bore size :6.53mm
bore type:through
Trailing angle:60 degree
Blade height:22.74mm
Tapered tip Angle: 30 degree
Cutback:0.0
6+6 blades
Reverse rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
